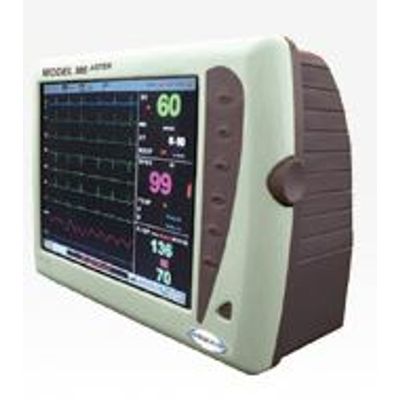

Mediaid -Model M6 Aster -Vital Signs Monitoring System

Safety

• Meets the requirements of: IEC60601

Dimension and Weight

• Dimension: 330mm (W) x 280mm (H) x 150mm (D)
• Weight: 6.5kg

Operation Environment

• Power: AC110~220V, 50/60 Hz
• Temperature: 5~40 0C
• Humidity: < 80%

Application Scope

• Adult, pediatric and neonatal

Performance Specifications

• Display: 12.1” color TFT
• Resolution:800 x 600
• Trace: 9 waveforms
• Sweep speed: 6.25, 12.5, 25, 50 mm/sec
• Indicator: Alarm indicator, Power indicator,
• QRS beep and alarm sound
• Interface: Net Port
• Battery: Rechargeable
• Trend time: 1~72 hours
• Alarm: 3-level audible and visual alarm
• Networking: Can be connected to
• central monitoring system
• Recorder: Built-in, thermal array

ECG

• 5-lead selectable
• Input: 5-lead: RA; LA; RL; LL; C
• Lead selection: I; II; III; avR; avL; avF; V
• ECG selection: 7 channels
• Gain waveform: x0.5; x1; x2; x4
• Sweep speed: 12.5mm/s, 25mm/s, 50mm/s
• Heart Rate range: Adult: 15~300bpm;
• Pediatric/Neonatal: 15~350bpm
• Accuracy: ±2bpm or ±2%, whichever is greater
• Resolution: 1bpm
• Protection: Withstand 4000VAC/50Hz voltage
• in isolation. Against electro surgical
• interference and defibrillation
• CMRR: 85 dB
• Calibration signal: 1mV 5%
• Operation modes: Diagnostic, Monitor, Surgery
• Bandwidth: 0.05~75 Hz
• Alarm range: Adult: 0~300bpm
• Pediatrinc/Neonatal: 0~350bpm
• S-T detection: YES
• Measurement range: -1.0mV~1.0mV
• Alarm range: -1.0mV~1.0mV
• Arrhythmia analysis: YES
• Pacemaking analysis: YES
• Alarm: YES, audible and visual alarm,
• alarm events recallable

Resplration

• Method: RA-LL impedance
• Measurement range: Adult: 1~99 rpm
• Pediatric/Neonatal: 1~99 rpm
• Resolution: 1 rpm
• Accuracy: ±2 rpm
• Alarm range: Adult: 1~99 rpm
• Pediatric/Neonatal: 1~99 rpm

SpO2

• Measurement range: 0~100%
• Resolution: 1%
• Accuracy: 80~100% ±2digit
• 60~79% ±3digit
• 0~60% unspecified
• Alarm range: 0~100%

Pulse Rate

• Range: 0~254 bpm
• Resolution: 1 bpm
• Accuracy: ±2bpm or ±2%, whichever is greater
• Alarm range: 0~254 bpm

NIBP

• Method: Oscillometric
• Operation modes: Manual/Automatic
• Measurement unit: mmHg/kPa selectable
• Measurement types: Systolic, Diastolic, Mean
• Measurement range: Systolic: 40~300 mmHg
• Diastolic: 10~220 mmHg
• Mean: 20~240 mmHg
• Over-pressure protection : YES
• Resolution: 1mmHg
• Accuracy: Mean error and standard deciation
• per ANSI/AAMI SP-10
• Alarm: Systolic: 40~240 mmHg
• Diastolic: 10~180 mmHg
• Mean: 20~200 mmHg

Temperature

• Measurement Range: 0–45°C
• Resolution: 0.1°C
• Accuracy: ±0.2 0C (including probe)
• Channel: Dual-channel
• Alarm range: 0~45 0C

• 12.1 inch Color TFT Display with 9 waveforms
• Parameters include ECG/Resp, SpO2 , NIBP, Temp and Pulse Rate
• Optional: IBP, EtCO2
• Arrhythmia Analysis, S-T segment analysis, HR analysis, NIBP and SpO2 combined analysis
• Maximum 72 hours trend data display and 2880 NIBP data storage
• Direct, Reverse and Quick NIBP measurement modes
• Suitable for adult, pediatric and neonatal patient
• Networking capability
• Protection function for NIBP over-range
• Built-in rechargeable Battery
