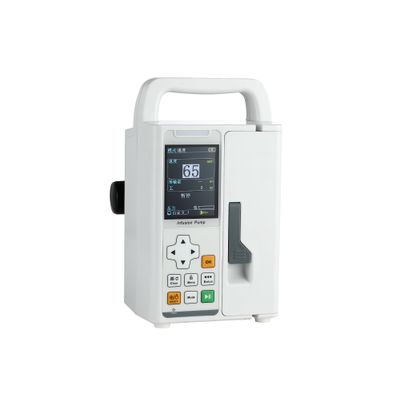

Bercon - Volumetric Infusion Pump
Three Work Mode: Rate, Time, Dose Mode. Manual or Automatic Bolus Function. Vertical &Horizontal Mounting Clamp. Anti-Bolus System. DPS Dynamic Pressure Display. KVO and Bolus Function. 2000 events stored can be checked and downloaded. Large Color TFT display with adjustable brightness.
Most popular related searches
- Open system
- TFT large screen
- Horizontal or vertical install
- Fit IV Tubes: Can be used with any brand IV set after exactly calibration
- Pump Type: Peristaltic finger pump
- Accuracy: -/- 2%
- Delivery Rate Range: 0.1mlm~1200mlm (0.1mlm~99.9mlm, O.lmlm step; >99.9mlm, 1mlm step)
- Delivery Time Range: OOhOlmin ~99h59min (1 min step)
- Volume Limit Range: 0.0-9999ml(1 ml step)
- Total Volume Range: 0.0-9999ml(1 ml step)
- Purge Rate: 600.0mlm (Adjustable)
- KVO Rate: 0.1~5.0mlm. Programmable and adjustable
- Occlusion Pressure: LOW: 60 (±15) kPa, MEDIUM: 90 (±15) kPa or HIGH: 120 (±15) kPa (Programmable and adjustable)
- Rate Abnormal, Door Open, Air-in-Line, Occlusion, Bottle Empty, Battery Empty, No Battery, Key Holding During
- Alarms: Infusion/ Pause, Infusion Complete, No Action, Battery Low
- Three levels of alarm volume LOW, MEDIUM or HIGH
- Volume: 0.1-999.9ml(0.1mlstep)
- DRUG MASS: 0.1-999.9mg (O.lmgstep)
- DOSE: 0.001-9999ug/kg/min(0.001ug/kg/min step)
- Dose Mode: WEIGHT: 0.1-300kg(0.1kgthe least step) Dose unit: ng/kg/min, ug/kg/min, mg/kg/min, g/kg/min, ug/kg/h, mg/kg/h, g/kg/h, u g/min, mg/min, g/min, u g/h, mg/h, g/h, U/min, U/h, lU/h, U/kg/h, mlm Bolus rate:1.0-1200mlm,Bolus volume:1.0-100ml
- Bolus Function: Programmable and adjustable, Automatic/Manual bolus available
- Drug library: 10 categories of drugs, amounts to 1030 kinds of drug names, 17kinds of dose units,
- Mode: Makes drug dispensing more convenient and safer. (Optional) (Only for VP3)
- Sequential Mode Available (Only for VP3):
- Interface: RS-232
- Brightness: 1-10 levels can be selected
- History Records: 2000 events stored can be checked and downloaded AC power supply: AC 100 to 240V( */-10%), 50/60Hz; DC Power supply: 12-15V, power>15W;
- Power Source: Built-in Lithium Battery: Rechargeable, 11.1V, 2000mAh. Shours of continuous operation
- Accessories: AC power line, Operational manual
- Protection Class: Class I, Type CF, IPX4
- Dimension / N.W: 120mm*100mm*215mm, 1.7kg
- Packing size/G.W250*190*1SSmm, 2.5kg:
