Ferrite -Model WR187 -Waveguide C-Band Microwave Circulators
Ferrite Microwave Technologies WR187 Waveguide C-Band Microwave Circulators are designed for high peak and high average power applications. Our circulator and isolator solutions place emphasis on the selection and bias point of the ferrite material to minimize insertion loss and maximize isolation at the frequency, bandwidth and power level of interest.
Our comprehensive line of C-Band, WR187 circulators and isolators include a wide array of configurations, design features, power levels, environmental specifications, and applications. Typically, our design features include:
- Configurations: “Y” or “T” junctions
- Cooling options: convection or liquid cooled
- Designs for: high peak power, high average power
- Qualified Units: AWACS, TPS-78, ASR-9, TRC-170, SMART-L, HAWK
- Used for: source protection with magnetrons, TWT’s, klystrons and solid state amplifiers
- Applications: Accelerators (scientific and medical), radar systems (isolators or duplexers), communications systems, and industrial processing.
With a design library of thousands of models to choose from, our circulator and isolator offerings are nearly limitless. As a product spotlight, we welcome you to explore the electrical and mechanical specifications of two of our circulators: CC3-86 and CC3-533. Both devices operate within the C-Band and are compatible with WR187 waveguide.
The following specifications apply to CC3-86:
Frequency Band: C-Band
Operating Frequency: 5400 MHz to 5900 MHz
Peak Power: 500 kW
Average Power: 500 W
Material: Aluminum 6061-T6
Flanges: WR-187 Cover/Choke
Finish: Chromate Golden per MIL-C-5541, Class 3

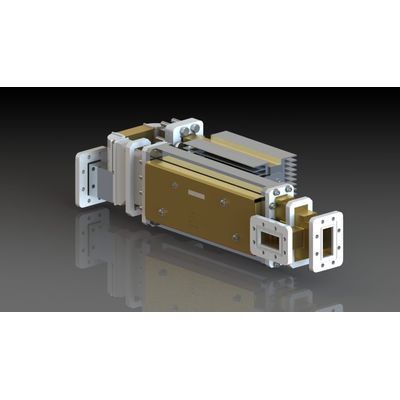

C-Band Microwave Circulators WR187 Waveguide
The following specifications apply to CC3-533
Frequency Band: C-Band
Operating Frequency: 5400 to 5900 MHz
Peak Power: 30 kW
Average Power: 120 W
Material: Aluminum, 6061-T6
Flanges: WR-187 Flat/Grooved
Finish: Chromate Golden per MIL-C-5541, Class 3
