REVEAL -Model FGS -Wearable Fluorescence Guided Surgery system

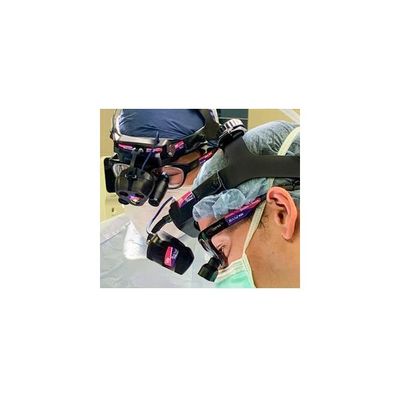

Introducing REVEAL FGS the first WEARABLE Fluorescence Guided Surgery system, providing surgeons with freedom of movement and positioning during FGS procedures. Designs for Vision’s new REVEALTM FGS system combines blue excitation light with emission filtered eyewear providing vibrant fluorescent visualization. Various magnifications can be incorporated into the REVEAL FGS system. This portable, wearable system offers the same visualization of other Fluorescence Guided Surgery approaches, with several distinct advantages including the ability to change perspective by simply changing your line of sight.
- Enhanced Visualization through emission filtering in both the magnification and eyeglass lens optics calibrated to REVEAL FGS Tribeam HDi Headlight
- TriBeam HDi Headlight combines three HDi (High Definition Imaging) LEDs enabling the surgeon to decide between two excitation settings and white light
- Wireless Blue-Tooth Foot Pedal enables the surgeon to control light settings easily
- Complete Mobility allowing surgeons to move around and view the surgical site at different angles
- Light Transmission Greater than 91% enabling surgeons to visualize a more brilliant fluorescence with greater detail
- Magnification Custom Fit to the surgeon, no special optical adjustments needed
To learn more about the science behind the REVEAL-FGS, read the article titled Development and validation of a triple-LED surgical loupe device for fluorescence-guided resections with 5-ALA
PATENTS
- REVEAL FGS EYEWEAR: 10,215,977 • 10,895,735
- REVEAL FGS TriBeam HEADLIGHT: US 11,099,376 B1
SURGICAL TESTING / APPROVALS
- LED DayLite HDi LEDSC
- Power Packs/Lights:
- IEC 60601 Third Edition Electrical
- Safety and 4th for EMC Safety
- IEC 62133
- IEC 62366-1
- ISO 14971
- REVEAL FGS EYEWEAR:
- EN207 (Field of View Coverage only)
