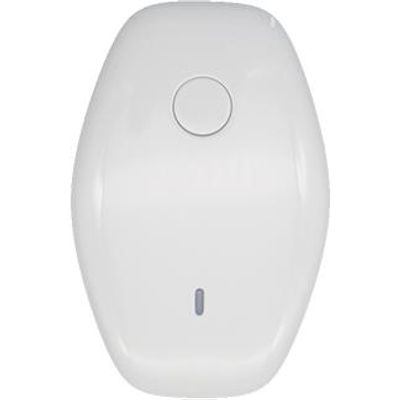

BeneWare - Wearable Holter Recorder

Dual electrodes for single channel Patch type for easy acquisition

• Waveform tracings clear,strong anti-interference ability can be upgraded to 3 channels by changing the cabel

Wireless transmission via Bluetooth

• Real-time observation of ECG single via APP

Perfect integration with Beneware holter analysis software

• Report can be printed for up 30 days,the accuracy of automatic atrial fibrillation analysis is as high than 98%,and the accuracy of QRS is as high as 99%

Full-Automatically Analysing Pacemarker

• Effectively monitoring various pacemarkers

• Parameters
• Channel : CP-022:1 channel, CP-025:1 channel /3 channel
• Frequency : up to 10000Hz
• Input Impedance : ≥10MΩ
• Response Frequency : +3dB~-3dB @ 0.05~60Hz
• Dynamic Input Range : 10mV, 6mV,resistance to polarization ± 300mV
• Pacemaker Detection : can identify 2~200mV, 0.1~2ms pulse
• Data Transmission : USB Bluetooth
• Sampling Precision : 16
• Physical Specifications
• Dimension : 13 x 57 x 37 mm
• Weight : Approx. 20g (lead wire not included)
• Operating Enviroment
• Temperature : 5 ~ 45°C
• Humidity : 10 ~ 95% (No condensation)
• Pressure : 700~1060hPa
• Battery
• Type : 3.7V Ni-HM battery inside
• Supply Voltage : 5V,100mAh
• Battery life : Fill a Tina, the longest can support 14 consecutive days of single channel record
