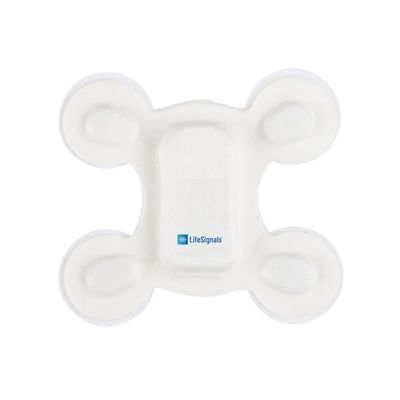

LifeSignals -Model 1AX -Wearable Medical Biosensor
LifeSignals 1AX Biosensor is a next generation clinical-grade device that records 2-channel ECG, respiration rate, heart rate and temperature. Designed for multi-parameter patient monitoring both in-hospital and home environments, the wearable biosensor also records patient body posture and has a built-in accelerometer. It’s the world’s first disposable, multi-parameter, wireless system wearable biosensor.
Most popular related searches
wearable biosensor
multiparameter patient monitoring
heart rate
skin temperature
patient monitoring
medical biosensor
wearable medical
patient data
electrocardiogram
defibrillation
- 2-channel ECG
- Event Indicator
- Heart Rate
- Gyroscope
- Respiration Rate
- Accelerometer
- Posture
- Water Resistant
- Skin Temperature
- Completely Untethered
- 5-Day Wear
- One-Time Use
Wireless
- IEEE 802.11b
- WPA2 – PSK/ CCMP security
- Up to 5 meter service range
Electrocardiogram
- 2 channels
- 244.14 and 976.56 samples per second
- 16 bit resolution
- 0.2 – 40 Hz and 0.05 – 150 Hz frequency response
- Patient activated event recorder
Additional Features
- Heart rate 30-250 bpm
- Skin temperature 29°C to 43 °C (minimum) range
- Respiration rate 5-60 breaths per minute range
- Accelerometer 3-axis (digital), posture status
Battery
- Lithium-Manganese dioxide (Li-MnO2)
- Up to 5 days battery life
- Defibrillation-proof type of
CF applied part
Biosensor Specs
- 105 mm x 94 mm x 12 mm
- 28g weight
- IP24 ingress protection
- Splash Proof
- Memory cache up to 16
hours
