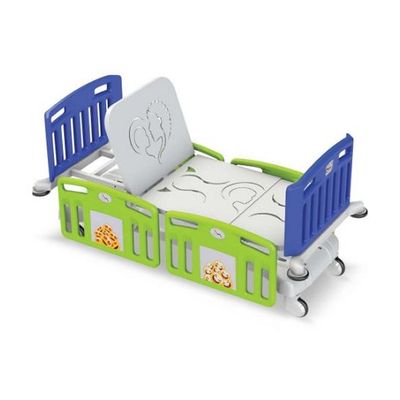

Archimed -Wiggle Pediatric Child Bed ( 4 Motors)
FromARCHIMED MEDICAL
Archimed Wiggle child bed has four motors. Head, height, trendelenburg and leg extension operates 4 independent motors, Motors are IP66 protection. There are hand set control panel and foot end control panel for activating the motors. Mattress platform is completely compact laminated material and child&mother figure on it.
Most popular related searches
Side rails and head-foot boards are PP. Castors are 125 mm, directional and total lock features
- Head, Height, Trendelenburg and leg extension operates 4 independent motors.
- Motors are IP66 protection
- There are handset control panel and foot panel control panel for activating the motors
- Mattress platform is completely compact laminated material
- There is child&mother figure on that compact laminate.
- Side rails and head-foot boards are PP
- Castors are 125mm, directional and total lock features
- Steel frame completely electrostatic powder painted.
- IV rod
- Leg extension is 32 cm
- There are themes on the bed for children.
- Overall dimension: 192*92*40-85h cm
- Mattress platform 160*70 cm
- Head part angle is 65°
- Trendelenburg angle 13°
- Reverse Trendelenburg angle is 13°
- ISO and CE
TECHNICAL DETAILS OF THE ACTUATORS
- Motor protective Class: IPX66
- Supply Voltage 110-220 V
- 24 V DC Motor
- SMPS (SWITCH MODE POWER SUPPLY)
- Usage temperature: 5 °C to 40 °C
- Relative humidity: 20% to 80% – non-condensing
- Atmospheric pressure: 700 to 1060 hPa
- Height above sea level: Max. 3000 meters
- Flammability rating: UL94V-2
- Approvals: IEC 60601-1, ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No 60601-1
