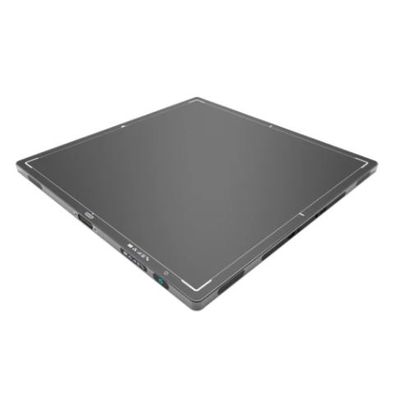

DÜRR - Model DRA 4343 - Wireless Digital Radiography Panel

Compact and fast with multiple scintillator options. Available panel options for the DRA 4343 panel include:

• "Fine" for X-Ray Sources at high resolution (with GOS scintillator)
• "Plus" for Gamma and X-Ray sources (with GOS scintillator)
• Low Dose X-Ray applications (Csi scintillator) - Price on Request

• Active area :
• DRA 3543 NDT: 350 mm x 426 mm (14" x 17")
• DRA 4343 NDT: 432 mm x 432 mm (17" x 17")
• Dimensions (H x W x D) : DRA 3543 NDT: 384 mm x 460 mm x 15.5 mm
• DRA 4343 NDT: 460 mm x 460 mm x 15.5 mm
• Weight : DRA 3543 NDT: 4.6 kg (10.1 lbs)
• DRA 4343 NDT: 3.8 kg (8.4 lbs)
• Number of pixels : DRA 3543 NDT: 3524 x 4288
• DRA 4343 NDT: 4288 x 4288
• Image transfer time (wired/wireless) :
• DRA 3543 NDT: 0.5/3 s
• DRA 4343 NDT: 0.6/3.6 s
• Max. Energy : 270 kV (for long life in typical applications), Isotopes (higher energies possible)
• Pixel pitch : 100 μm
• Scintillator options : CsI, GOS
• ADC : 16-bit
• On-board memory : 1 GB DDR3, 8 GB SDHC card
• Interface : Gigabit Ethernet, WLAN (802.11n @ 5 GHz)
• Battery : Lithium-ion, 46.6 Wh, charging time 3h
• Operating conditions : 10 to 35°C (50 to 95°F), 20 to 80 % humidity
• Housing : Aluminum frame, carbon-fiber entrance window (150 kg area load)
• Software : DÜRR NDT D-Tect 9.9 or higher
