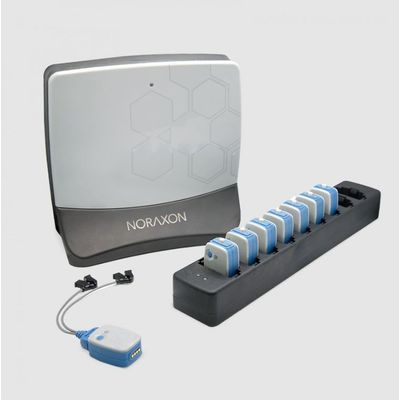

Model Ultium EMG -Wireless EMG with Internal IMU

SHARE

Electromyography (EMG) measures muscle response or electrical activity in by way of a nerve`s stimulation of the muscle. In particular, Surface EMG signals are recorded by non-invasive electrodes and assesses muscle function by recording muscle activity from the surface above the muscle on the skin. These EMG signals are becoming increasingly important in many applications, including clinical/biomedical, prosthesis and other rehabilitation devices. Noraxon`s Ultium EMG sensor system is a multi-modal device that delivers high-fidelity data and flexible measurement options. Ultium EMG sensors sample up to 4,000 times per second, synchronize in real-time, and demonstrate low baseline noise (

Most popular related searches

EMG SAMPLING RATE: Up to 4,000 Hz

EMG INTERNAL SAMPLING RESOLUTION: 24-bit

EMG BASELINE NOISE: <1μV

EMG CMRR: < -100dB

EMG INPUT IMPEDANCE: > 100 M?

EMG RESOLUTION (0 TO 5,000UV): 0.3uV

EMG RESOLUTION (5,000 TO 24,000UV): 1.1uV

EMG HIGH PASS FILTERS: Software selectable (5/10/20Hz)

EMG LOW PASS FILTERS: Software selectable (500/1000/1500Hz)

ELECTRODE IMPEDANCE TEST: Integrated into sensors

INTERNAL MEMORY: >8 hours of data storage

ANALOG OUTPUT: Up to 32 channels available

ACCELEROMETER SAMPLE RATE: Up to 500Hz

FULL IMU SAMPLE RATE: Up to 400Hz

BIOMECHANICAL SENSORS: 8+ Smart Lead sensors available
