Wisman - Model XN - X-ray Generator
From X-ray Generator

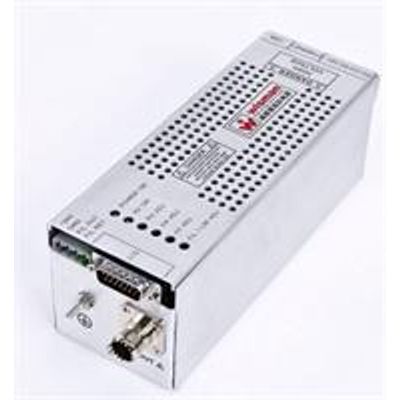

The XN Series is the result of wisman’s exceptional high voltage packaging and surface mount fabrication techniques coupled with proprietary encapsulation technology producing this ultra-compact X-Ray generator module. The XN powers grounded cathode X-Ray tubes from a variety of well-known manufacturers, featuring a 0 to 50kV high voltage output @ 2mA limited to 50 Watts. The XN uses closed loop .lament control circuitry providing highly regulated beam current. The low noise dc .lament supply operates between 0.3 and 3.5 amps. Offering tight regulation, high stability and low ripple, the XN provides users local and remote analog control to set beam voltage, emission current and filament current limit. RS-232 is standard.USB,Option USB and Ethernet interface.
-
Most popular related searches
Typical Applications
- Powering grounded cathode X-Ray tubes from Kevex, Oxford, RTW, Superior, Varian and Trufocus.
Options
- XCC XRW Compatible HV Cable (50kV only)
- 5VPM 0 to 5 Volt Programming and Monitor Scaling
Specifications
Input:
+24Vdc ±10%, 5.0A maximum for either 50 Watts .
Efficiency:
75%, typical
Output:
0 to 50kV at 0 to 2mA, limited to a maximum of 50 watts.
Voltage Control:
Local: Internal multi-turn potentiometer to set voltage from 0 to full output voltage.
Remote: 0 to +10Vdc proportional from 0 to full output voltage. Accuracy: ±1%. ZIN: 10Mohm.
Emission Control:
Local: Internal potentiometer to set beam current between 0 and full output current.
Remote: 0 to +10Vdc proportional from 0 to full output current. Accuracy: ±1%. ZIN: 10Mohm. Filament limit and filament preheat control capability is also provided.
DC Filament Supply:
Isolated filament power supply generates emission current feedback signal for accurate low X-Ray tube current performance.
Current: 3.5A, adjustable limit.
Voltage: 5.0 volt limit.
Environmental:
Operational: 0°C to +50°C
Storage: -40°C to +85°C
Humidity: 0% to 90%, non-condensing
Temperature Coefficient:
0.01% per °C, voltage and current.
Stability:
0.05% per 8 hours after 1/2 hour warm-up.
Voltage and Current Monitors:
0 to +10Vdc proportional from 0 to rated output. Accuracy ±1%.
Redundant Voltage Monitor:
A redundant high voltage feedback divider with proportional 0 to +10Vdc = 0 to 100% output voltage signal can be provided on a custom basis.
Dimensions:
50kV Unit: 2.95”H x 2.95”W x 8”D (75.00mm x 75.00mm x203.00mm)
Weight:
1.7kg typical
