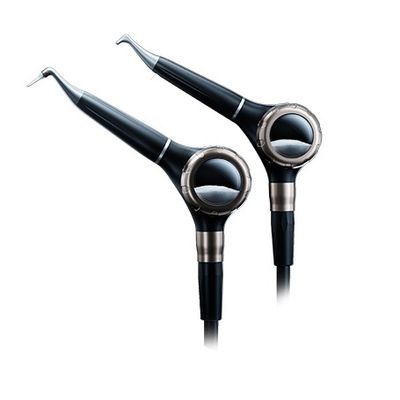

Woodpecker - Model AP-H - Dental Air Polisher

0.7mm small caliber nozzle
More concentrated powder output More accurate scaling
0.7mm Nozzle caliber for powder measures 0.7mm 1.4mm Nozzle caliber for water measures 1.4mm Smaller caliber allows more concentrated air polishing Companies on the market with dental air polisher of 0.7mm small caliber nozzle include Woodpecker, EMS and NSK.

Three-section air-polishing handpiece design
Detachable handpiece
Woodpecker handpiece can be detached for maintenance if clog occurs, which makes it unique among all the brands.

360°rotatable
Pre-bendable subgingival nozzle
Three-direction powder output One-direction water output Efficiently eliminate biofilms Thoroughly clear dead ends

User-friendly design
Lateral transparent powder container enables easier observation of remaining powder

Ergonomic desi More flexible and lightweight

Easy quick connection for plugging and using Lightweight design relieves grip fatigue
Suitable for all dental chairs
The whole device weights about 125g, much lower than similar products on the market (135~165g)
Easy to adjust the angle, flexible to apply to use

Black and gold color design contributes to more fantastic appearance

Pioneer in a new era of air polishing
Why is air polishing selected?
Air polishing is a process of using compressed air to spray powder and water on the tooth surface through air-polishing equipment to remove the attachments (such as biofilm, pigment, soft dirt, etc.) and polish the tooth surface. Air polishing has become an indispensable tool for biofilm control in the new era. Compared with traditional ultrasonic scaling, air polishing is more efficient and comfortable, causing no scratch to the tooth surface, and is less likely to harm soft tissues, so as to reduce patient`s tension.

AP-H

• With national patent design
• More sientific More efficient
• 0.7mm small caliber nozzle
• Three-section air-polishing handpiece design
• 360°rotatable
• User-friendiy design

Main technical parameters

• Input water pressure:0.7bar to 2.2bar (70-220kPa)
• Input air pressure: 3.5bar to 4.5bar (350-450kPa)
• Working mode: continuous operation, Intermittent operation
• Weight: About 0.150kg
• Connector: Meets the requirements of YY / T 0514
• Operation environment:
• Environment temperature: + 10?~ +40?
• Relative humidity: 30% ~ 75%
• Atmospheric pressure:50kPa ~ 106kPa
