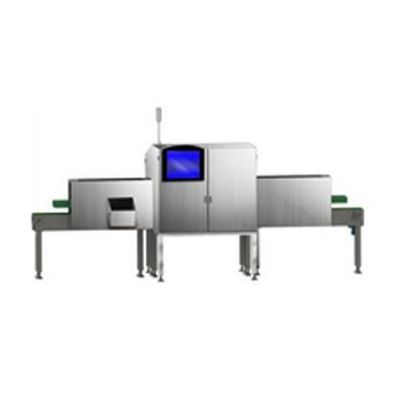

Coso - Model XR-1512-2 - X Ray Foreign Matter Scanner Machine

High and reliable security.

• X-ray’s leakage rate is less than 1μSv/hour, which accords with American FDA standard and CE standard.

Friendly human-machine interaction.

• Automatically setting detection parameter, greatly simplifies operation procedures.

Convenient and simple cleaning and maintenance.

• The waterproof level of detection tunnel is IP66, and other constructions accord with IP54, so it can be cleaned with water.

Strong ability to adapt environment.

• Full airtight case is waterproof and dustproof.
• Equip high-property dehumidifer, which can bear  humidity of 90％.

High configuration and stability.

• The main components of device come from international first-class brand, which can guarantee stability of machine and its service life.

• Model:XR-1512-2
• X-ray source: 480W 120kV
• Detecting width:180mm
• Detecting Height:250mm
• Best sensitivity: Stainless Steel Ball Φ0.3mm, Stainl...
• Conveying speed: 10-70m/min
• Screen: 17 Inches Full Color Touch Screen
• Interface for data: LAN Port, USB Port
• Working environment: Temperature: -10℃-40℃ (Cooling: indus...
• X-ray leakage:＜1μSv/hour
• Protective mode: Protective soft curtain, removable.
• Alarm: Sound and light alarm, stop, and rejecti...
• Power supply: AC220V ±10% 50/60Hz， 1.5kVA Max
• Protection level: IP66
• Material: SUS304
• Applicable products: Packing or without packing products
• Affordable weight on convey...:Standard: Max 5 Kg on conveyor
• Product description: It can detect glass, stone, metallic impurities quickly from sealed cans, glass bottles.
