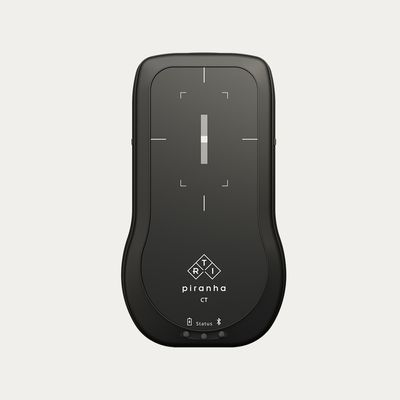

Piranha -Model CT -X-ray QA Meter
The Piranha CT X-ray QA meter measures and presents all parameters instantly and simultaneously. It measures kVp, Time, Total Filtration, CTDI parameters, dose length product, and presents Waveform. Several important parameters can also be measured such as CTDI100, CTDIw, CTDIvol, DLP, FWHM, Geometric efficiency, and tube current variations. Choose your Piranha CT with CT Dose Profiler or Ion chamber.
The Piranha CT X-ray meter comes ready to use with everything you need. It is really an all-in-one multifunction meter. Connect to your computer wireless or via USB for a complete QA system.
The unique feature of the Piranha CT X-ray meter makes it possible to check the position of the detector before measuring. By using the Position Check function, you can verify that the detector area is fully irradiated. Possible field inhomogeneities are also neutralized.
Use with RTI’s Chamber Adapter, Ion Chamber, and CT Dose Profiler for deep analysis of CT dose profiles.
Piranha CT - general specifications
- Size: 133 x 75 x 26 mm
- Weight: Approx. 400 g
- Display: PC or Windows Tablet
- Software: Ocean Next™ software for X-ray QA
- Database support: Yes
- Interface type: Built-in Bluetooth and USB
- Detector Position Check: Yes
- Simultaneous Dose Measurements: Yes - up to two detectors simultaneously
- Use of Dose Detector with Active AEC: Yes - RTI Dose Probe or RTI T20
- Bluetooth range: 100 m free-in-air
- USB cables: Included
- Power source: Rechargeable Li ion battery / Ext. power supply
- Battery life: Approx. 15 hours
- Battery tested: According to UN 38.3
- No. of exposures needed for measurement: One
- Min. exposure time: 0.1 ms
- Memory: Unlimited
- Operating temperature: 15 °c – 35 °c
- Storage temperature: -10 °c - +50°c
- Waveform Sampling rate: 4 – 2000 samples/s
- Waveform recording time: 1024 ms – 524 s
- Backscatter Protection: Yes - main unit, RTI Dose Probe, and RTI T20
- Warranty: Two years
- Extended Warranty: Up to ten years
- Calibration Cycle: Two years
- Standard: Complies with relevant parts of the standards IEC 61674 and IEC 61676 for Dosimetric instruments
- EMC Tested: According to IEC 61326-1:2012
- PTB Approval: DE-17-M-PTB-0070
Piranha CT- measuring parameters
- Tube Voltage: 45 – 155 kV (±1.5 %)
- Time: 0.1 ms – 2000 s (±0.5 % or ±0.5 ms)
- Total Filtration: 1 – 90 mm Al (±10 % or ±0.3 mm)
- HVL: 0.72 – 13 mm Al (±10 % or ±0.2 mm)
- Pulses: 1 – 65535 pulses (±1 pulse)
Piranha CT - specifications with CT Dose Profiler
- Dose rate range: 67 nGy/s-2.2 Gy/s. 0.46 mR/min - 15000 R/min
- Inaccuracy: ±5 % or ±15 nGy/s
- Spatial resolution: 0.25 mm
Piranha CT - specifications with CT Ion Chamber
- Air kerma rate: 0.3 mGycm/s to 3 Gycm/s
- Inaccuracy: ±5 % or ±0.03 mGycm/s
- Connector type: LEMO triaxial
- Cable: 2 m, low noise triaxial
- Active volume: 16 cm³
- Active length: 300 mm
- Diameter: 12 mm, 12.6 incl O-rings
- Typical leakage: ±20 fA
- Radiation quality: 70 - 150 kV
- Sensitivity: 30 mGycm/nC
- Energy Dependence: ±1 %
- All-in-one multifunction X-ray meter
- Solid-state detectors = no need to compensate for temperature & pressure
- Built-in energy compensation
- Can be used together with ion chambers
- Wide-range detection of total filtration
- 100 meters Bluetooth range
- Unique detector design to minimize position and rotation dependence
- Automatic recognition of external probes
- Small, compact, and robust – easy to position
- Backscatter protected
- Long-lasting rechargeable battery
- Always free firmware upgrades
- Upgradable to any Piranha model
- Up to ten-year warranty
- Two-year Calibration Cycle
