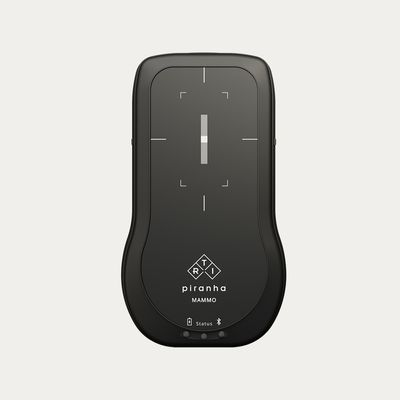

Piranha Mammo -X-ray QA Meter
The Piranha MAMMO X-ray QA meter is all you need to take QA measurements for any 2D or 3D X-ray system in hospitals or mammography clinics. Measures kVp, Time, HVL, Total Filtration, Dose, Dose rate, presents Waveform, and much more. See specifications for further information. Easily customize your measurements and reports with Ocean Next software.
- All-in-one multifunction X-ray meter
- One-shot HVL
- Solid-state detectors = no need to compensate for temperature & pressure
- Can measure on scanning beams as well as tomosynthesis
- Optimized for X-ray equipment from a large number of manufacturers
- Built-in energy compensation
- Can be used together with ion chambers
- Automatic recognition of external probes
- Small, compact, and robust – easy to position
- Backscatter protected
- Long-lasting rechargeable battery
- Always free firmware upgrades
- Upgradable to any Piranha model
- Up to ten-year warranty
- Two-year Calibration Cycle
The ultimate solution for Mammography QA testing
We are proud that all of our mammography solutions comply with the guidelines and requirements of MQSA, EUREF, IAEA, and ACR to ensure safe and high-quality testing.
Included: internal rechargeable battery, internal Bluetooth & USB port, USB cable, Ocean Next™ software with Advantage license, Power supply, USB Stick, Soft-Shell transport case, and Basic online training.
Standard two-year warranty/calibration. Read about our pre-paid calibration and extended warranty.
The Piranha MAMMO X-ray QA meter comes ready to use with everything you need – an all-in-one multifunction meter. Connect to your computer wireless or via USB for a complete QA system.

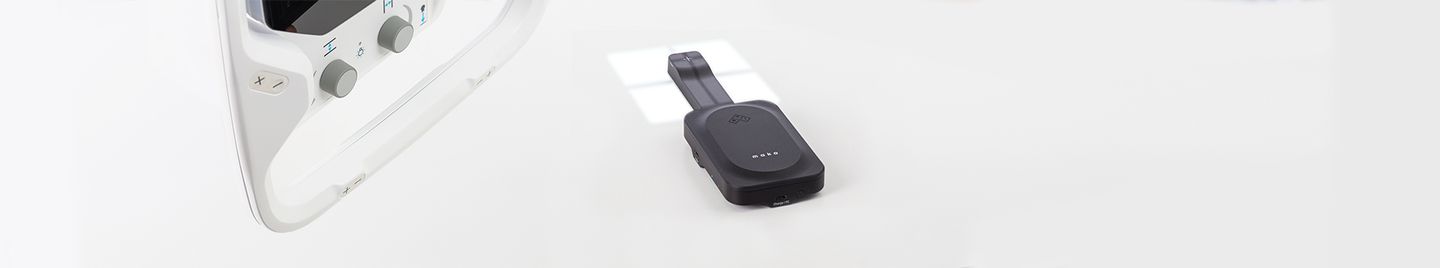

The unique feature of the Piranha Mammo X-ray QA meter makes it possible to check the position of the detector before measuring. By using the Position Check function, you can verify that the detector area is fully irradiated. Possible field inhomogeneities are also neutralized.
Its compatibility with our Ocean Next™ software provides quick and repeatable QA work. Ocean can perform instant real-time analysis during your measurements. Use your tablet/laptop as both an interactive display during the measurements and as a powerful analysis tool when you are back at the office.
Piranha MAMMO - general specifications
- Size: 133 x 75 x 26 mm
- Weight: Approx. 400 g
- Display: PC or Windows Tablet
- Software: Ocean Next™ software for X-ray QA
- Database support: Yes
- Interface type: Built-in Bluetooth and USB
- Detector Position Check: Yes
- Simultaneous Dose Measurements: Yes - up to two detectors simultaneously
- Use of Dose Detector with Active AEC: Yes - RTI Dose Probe or RTI T20
- Bluetooth range: 100 m free-in-air
- USB cables: Included
- Power source: Rechargeable Li ion battery / Ext. power supply
- Battery life: Approx. 15 hours
- Battery tested: According to UN 38.3
- No. of exposures needed for measurement: One
- Min. exposure time: 0.1 ms
- Memory: Unlimited
- Operating temperature: 15 °c – 35 °c
- Storage temperature: -10 °c - +50°c
- Waveform Sampling rate: 4 – 2000 samples/s
- Waveform recording time: 1024 ms – 524 s
- Backscatter Protection: Yes - main unit, RTI Dose Probe, and RTI T20
- Warranty: Two years
- Extended Warranty: Up to ten years
- Calibration Cycle: Two years
- Standard: Complies with relevant parts of the standards IEC 61674 and IEC 61676 for Dosimetric instruments
- EMC Tested: According to IEC 61326-1:2012
- PTB Approval: DE-17-M-PTB-0070
Piranha MAMMO - measuring parameters
- Time: 0.1 ms – 2000 s (±0.5 % or ±0.5 ms)
- Dose: 1 nGy – 1000 Gy. 3 µR – 150 kR (±5 %)
- Dose Rate: 25 nGy/s – 530 mGy/s (±5 % or ±12 nGy/s)
- 30 μR/s – 60 R/s (±5 % or ±1.5 μR/s)
- HVL Range: 0.19 – 4.3 mm Al (depending on Target/Filter combination) (±10 %)
- Pulses: 1 – 65535 pulses (±1 pulse)
