RTI -X-Ray QA Scatter Probe
The RTI Scatter Probe is our revolutionary solid-state detector for leakage and scatter detection in X-ray environments. Its unique design – two separate detector areas of 10 cm² and 100 cm² – fulfills current regulations and standards for X-ray leakage and scatter measurements (complies with the relevant 21 CFR and IEC 60601 standards). The Scatter Probe connects to our world-leading Ocean Next™ software for measurement reading and reporting.
For barrier, leakage, and scatter measurements various industry standards apply.
- 21 CFR 1020.32
- 21 CFR 1020.30
- IEC 60601-2-54
- IEC 60601-1-3
There are several more standards for various modalities.
Common for all these standards is that the measurement must be made covering an area of 10 cm² or 100 cm² at a certain distance. The detector areas of the RTI Scatter Probe ensure full compliance with these standards.
It does not matter if your scatter and leakage application require measurements at a short distance, long-distance, in a fixed position, or sweep, with a click you can select the 10 cm² or 100 cm² area for your measurement.

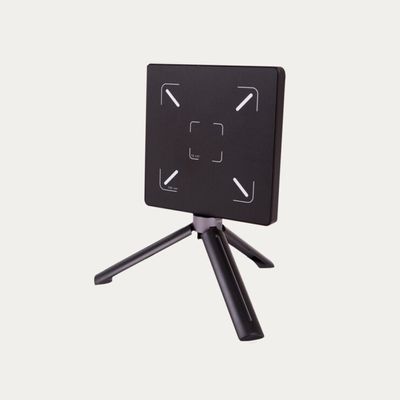

Stand on a table, use by hand, or mount on the included tripod, the RTI Scatter Probe is quick, simple, and easy to position.
The anti-slip surface also allows safe positioning facing upwards without sliding.
With the standard camera tripod thread, the probe can be mounted to any tripod or jig.
- Connector type: USB Type C
- Cable: 5 m USB A to C
- Extendable with optional USB
- Active extension cable
- Power: 5 V via USB
- Active area: 10 cm² and 100 cm²
- Dimensions: 139 x 139 x 17 mm
- Weight: 370 g (430 g incl. handle)
- Rated range of use: 10 - 150 keV
- 80 - 110 kPa
- +10 - +40 °C
- 10 - 80% rel. humidity
- Trig Mode: Auto or Manual
- Trig Level (auto): 5 μGy/h (0.6 mR/h) or 10 μSv/h
- Air Kerma Rate: 0 - 100 mGy/h (0 - 10 R/h)
- ±10% or ±0.3 μGy/h, 0.03
- mR/h (ISO N20-N150)
- Air Kerma: 0 - 999 Gy (0 - 999 R)
- ±10% or ±0.3 μGy/h, 0.03 mR/h (ISO N20-N150)
- H*(10) Rate: 0 - 200 mSv/h
- ±10% or ±0.6 μSv/h (ISO N20-N150)
- H*(10): 0 - 999 Sv
- ±10% or ±0.6 μSv/h (ISO N20-N150)
- Mean Energy: 10 - 150 keV
- ±10% or 5 keV (min rate: 25 μGy/h)
- Half Value Layer (HVL): 0.1 - 17 mm Al
- ±10% or 0.05 mm Al (min rate: 25 μGy/h)
- Time: 0-9999 s
- Sampling Rate: 1-300 Hz (Bandwidth 0.5 - 50 Hz)
