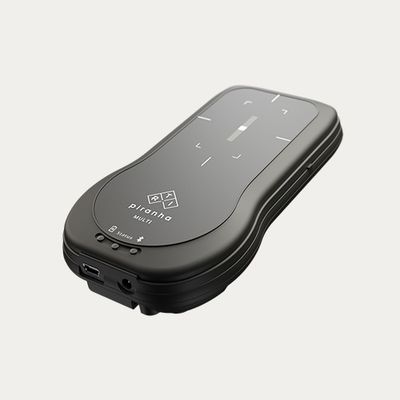

Piranha -X-ray QA Testing Meter Kit

The all-in-one complete solution for QA testing

The Piranha Premium Kit MULTI with associated probes is all you need for qualified diagnostics. Bring your case to any Rad/Fluoro, CT, Dental, and Mammography X-ray unit and perform your work without missing any item. It measures kVp, Time, HVL, Total Filtration, Dose, Dose rate, and presents Waveform.

Read about our pre-paid calibration and extended warranty.

Piranha MULTI - general specifications

• Size: 133 x 75 x 26 mm
• Weight: Approx. 400 g
• Display: PC or Windows Tablet
• Software: Ocean Next™ software for X-ray QA
• Database support: Yes
• Interface type: Built-in Bluetooth and USB
• Detector Position Check: Yes
• Simultaneous Dose Measurements: Yes - up to two detectors simultaneously
• Use of Dose Detector with Active AEC: Yes - RTI Dose Probe or RTI T20
• Bluetooth range: 100 m free-in-air
• USB cables: Included
• Power source: Rechargeable Li ion battery / Ext. power supply
• Battery life: Approx. 15 hours
• Battery tested: According to UN 38.3
• No. of exposures needed for measurement: One
• Min. exposure time: 0.1 ms
• Memory: Unlimited
• Operating temperature: 15 °c – 35 °C
• Storage temperature: -10 °C - +50°C
• Waveform sampling rate: 4 – 2000 samples/s
• Waveform recording time: 1024 ms – 524 s
• Backscatter Protection: Yes - main unit, RTI Dose Probe, and RTI T20
• Warranty: Two years
• Extended Warranty: Up to ten years
• Calibration Cycle: Two years
• Standard: Complies with relevant parts of the standards IEC 61674 and IEC 61676 for Dosimetric instruments
• EMC Tested: According to IEC 61326-1:2012
• PTB Approval: DE-17-M-PTB-0070

Piranha MUTLI - specifications for Radiography & Fluoroscopy

• Tube Voltage: 35 – 160 kV (±1.5 %)
• PPV: Yes
• Time: 0.1ms – 2000 s (±0.5 % or ±0.5 ms)
• Dose: 1.3 nGy – 650 Gy. 150 nR – 74 kR. (±5 %)
• Dose Rate: 15 nGy/s – 320 mGy/s (±5 % or ±7 nGy/s), 1.7 μR/s – 37 R/s (±5 % or ±0.8 μR/s)
• Auto Compensation: All dose parameters are automatically compensated for using measured kVp and TF over their specified ranges.
• HVL: 0.72 – 13 mm Al (±10 % or ±0.2 mm)
• Total Filtration: 1.0 – 90 mm Al (±10 % or ±0.3 mm)
• Pulses: 1 – 65535 pulses (±1 pulse)
• Dose/pulse: 8 nGy/pulse – 0.9 Gy/pulse
• Pulse Rate/Frequency: 0.5 – 180 Hz
• Pulse width: 4 ms – 2000 s

Piranha MULTI - specifications for Mammography

• Time: 0.1 ms – 2000 s (±0.5 % or ±0.5 ms)
• Dose: 1 nGy – 1000 Gy. 3 µR – 150 kR (±5 %)
• Dose Rate: 25 nGy/s – 530 mGy/s (±5 % or ±12 nGy/s)
• 30 μR/s – 60 R/s (±5 % or ±1.5 μR/s)
• HVL Range: 0.19 – 4.3 mm Al (depending on Target/Filter combination) (±10 %)
• Pulse: 1 – 65535 pulses (±1 pulse)

Piranha MULTI - specifications for CT

• Tube Voltage: 45 – 155 kV (±1.5 %)
• Time: 0.1 ms – 2000 s (±0.5 % or ±0.5 ms)
• Total Filtration: 1 – 90 mm Al (±10 % or ±0.3 mm)
• HVL: 1.2 – 14 mm Al (±10 % or ±0.2 mm)
• Pulses: 1 – 65535 pulses (±1 pulse)

Piranha MULTI - specifications for Dental

• Tube Voltage: 35 – 125 kV (±1.5 %)
• PPV: Yes
• Time: 0.1ms – 2000 s (±0.5 % or ±0.5 ms)
• Dose: 1.3 nGy – 650 Gy. 150 nR – 74 kR. (±5 %)
• Dose Rate: 15 nGy/s – 320 mGy/s (±5 % or ±7 nGy/s). 1.7 μR/s – 37 R/s (±5 % or ±0.8 μR/s)
• Auto Compensation: All dose parameters are automatically compensated for using measured kVp and TF over their specified ranges.
• HVL: 1.2 – 14 mm Al (±10 % or ±0.2 mm)
• Total Filtration: 1.0 – 90 mm Al (±10 % or ±0.3 mm)
• Pulses: 1 – 65535 pulses (±1 pulse)
• Dose/pulse: 8 nGy/pulse – 0.9 Gy/pulse
• Pulse Rate/Frequency: 0.5 – 180 Hz
• Pulse width: 4 ms – 2000 s

Piranha MUTLI - specifications with RTI Dose Probe

• Size: 20 x 45 x 7.4 mm, 0.79" x 1.8" x 0.29"
• Weight: 85 g (3 oz)
• Cable length: 2.0 m (6.6 ft)
• Backscatter protected: Yes
• Dose: 100 pGy – 1.5 kGy. 12 nR – 170 kR (± 5%)
• Dose Rate: 4 nGy/s – 150 mGy/s (±5 % or ±10 nGy/s).
• 0.46 μR/s – 16 R/s (±5 % or ±1 μR/s).
• 26 μR/min – 1000 R/min (±5 % or ±6 μR/min).
• Time: 0.1 ms – 34000 s (±1 % or ±0.5 ms)
• Pulses: 1 – 65535 pulses (±1 pulse)
• Dose per pulse: 1 nGy/pulse – 0.3 Gy/pulse
• Pulse rate/frequency: 0.5 – 100 Hz
• Pulse width: 4 ms - 2000 s

Piranha MUTLI - specifications with MAS-1

• Type: MAS-1B
• Current range: 0.1–3000 mA
• Inaccuracy: ±1 % or ±0.01 mA
• Frequency range: DC–500 Hz (-3 dB)
• Size: 60 x 35 x 72 mm
• Weight: 125 g
• Battery life: Around 100 h
• Rechargeable battery: With mini-USB connector
• Cable length: 4 m (extension available)
• Connector: Hirose

Piranha MULTI - specifications with MAS-2

• Type: MAS-2
• Current range: 10 - 4000 mA
• Inaccuracy: ±5 % or ±2 mA (±3 % at 250 mA)
• Charge range: 0.1 mAs - 9999 mAs
• Size: 183 x 61 x 36 mm
• Connector: Hirose
• Maximum cable diameter: 24 mm
• Power source: 9 V "6LR61" Alkaline battery

Piranha MULTI - specifications with CT Dose Profiler

• Dose rate range: 67 nGy/s-2.2 Gy/s. 0.46 mR/min - 15000 R/min
• Inaccuracy: ±5 % or ±15 nGy/s
• Spatial resolution: 0.25 mm

Piranha MUTLI - specifications with CT Ion Chamber

• Air kerma rate: 0.3 mGycm/s to 3 Gycm/s
• Inaccuracy: ±5 % or ±0.03 mGycm/s
• Connector type: LEMO triaxial
• Cable: 2 m, low noise triaxial
• Active volume: 16 cm³
• Active length: 300 mm
• Diameter: 12 mm, 12.6 incl O-rings
• Typical leakage: ±20 fA
• Radiation quality: 70 - 150 kV
• Sensitivity: 30 mGycm/nC
• Energy Dependence: ±1 %
