NIPRO OKAY II -Y-Connector - Hemostatic Valve
10Fr Inner Lumen Diameter: Suitable for a variety of advanced multi-device techniques. One-Touch Control: The hemostatic valve is easy-to-use with single hand operation. Minimize Blood Loss: Blood loss during procedure can be significantly reduced with the OKAY II device compared with other products without the hemostatic valve. Hemostatic Valve with Convenient Lock-Open Feature: Once the hemostatic valve has been opened, a 1/4 turn locks the valve in the open position. The Fixed Valve: The fixed valve on the OKAY II device can be closed by turning the thumb wheel clockwise with a "1 revolution" motion. The fixed valve secures devices in place during contrast injection, ballooning, or stenting. Prevent Loss of Pressure: OKAY II pressure resistance with fixed valve closed ≤500psi*

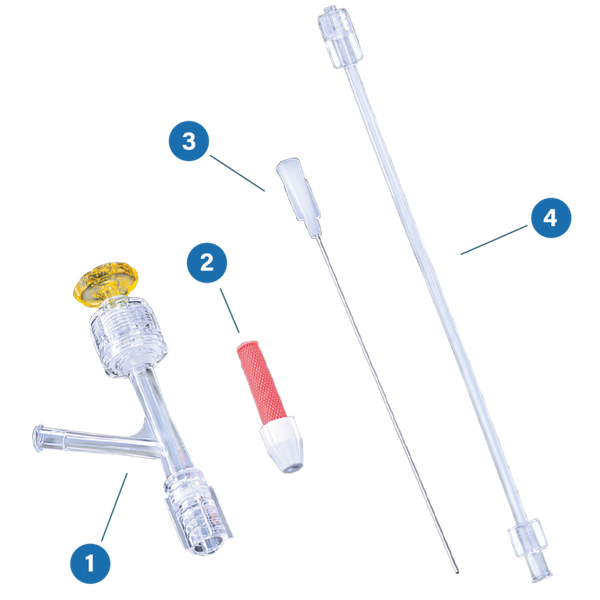

1 OKAY® II Y-Connector
10Fr Inner lumen
≤500psi, with fixed valve closed*
2 Torque Device:
Compatible guidewire diameters: 0.010" – 0.018"
3 Inserter:
Inner diameter = 0.021” (max guidewire size: 0.018”)
4 Extension Tube:
22cm, pressure resistance: ≤500psi

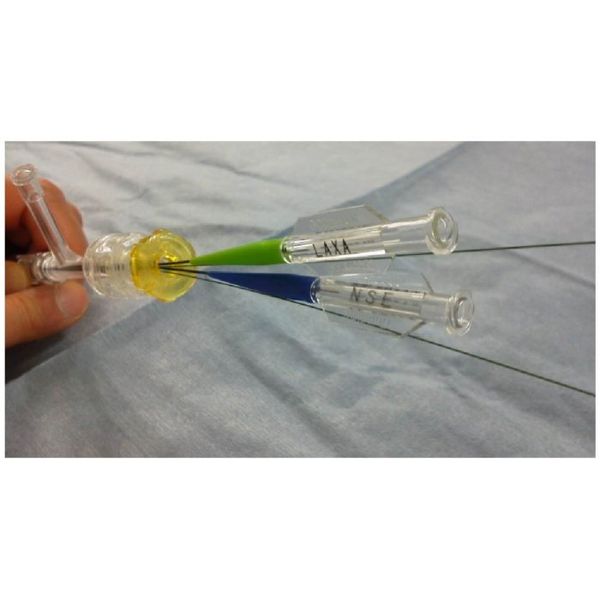

The OKAY® II is designed utilizing both a fixed and hemostatic valve. An inner lumen of 10Fr facilitates easy insertion and is suitable for a variety of interventional cardiology devices including the Kissing Balloon Technique (KBT), Stent, Rotablator™ (up to 2.5mm Burr), DCA and more.
