Mitre SpoolFab - Draw Piping Isometrics and Manage Fabrication Software
Piping Isometric Drawing Software with Fabrication Management. Draft spools faster, use inventory more efficiently, plan your NDE logically.
Draw Piping Isometrics
Quickly produce installation isometrics and fabrication spool drawings. Work from hand sketches or just draw them directly.
Auto-Generate Bill of Materials
As you draw, the BOM generates and updates itself automatically.
Track Spools
You can assign welding lots and output to a variety of cutting machines.
Import IDF and PCF Files
You can start by importing IDFs & PCFs to utilize SpoolFab`s features.
Draw Bio-Pharmaceutical Fittings
Used in vaccine plants, food plants and more.
Dark Mode
Reduce eye strain during prolonged work with a chalkboard appearance.
Start with IDF or PCF files, installation drawings, or draw spools directly. The creation of piping spools enables you to record heat numbers and release drawings to fabrication. Record weld details, non-destructive evaluations and generate reports.
Draw Piping Isometrics Efficiently

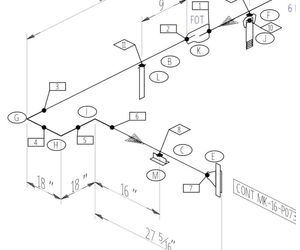

Create isometric drawings in minutes:
3 clicks to draw a pipe, 3 clicks to add an elbow, 1 click to add a dimension and 3 clicks to print.
- Easy isometric interface
- Import IDF or PCF files
- Allows for flexible drawing
SpoolFab`s inventory system enables the automatic inventorying and subsequent generation of reports such as:
- Job Status Reports
- Material Reports

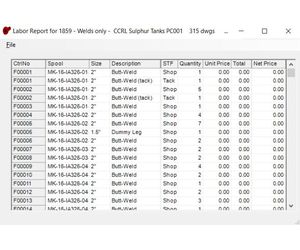

- Field, Tack and Shop Weld Reports
- And More...
- Assign Welding Lots
- Output to Cutting Machines
SpoolFab supports a collection of common carbon steel, stainless steel, and MaxPure BPE Fittings and allows for the addition of your own specifications.

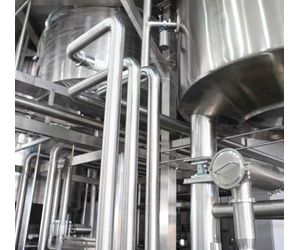

Draw ferrules, tees, elbows and valves with clamps on the clamped ends.

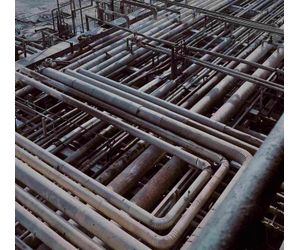

Draw carbon steel piping and fittings.
Draw stainless steel piping and fittings.
