Model 6.0e. -HE/LX® (Holter) Analysis Software
The HE/LX® (Holter) Analysis software comes in four levels of functionality: Basic, Enhanced, Enhanced Plus, and Pro. Each software level is tailored to address the various needs of our diverse user community. The software and efficient file structure on which it is built offers the doctor’s office, the scanning service, and the most demanding cardiac practice, the fastest and most user-friendly environment to reduce the time spent in producing intuitive and accurate patient results. This world class software supports network environments and remote off-site office connectivity. A number of proprietary features make this software unique and the most productive and highly regarded in clinical and diagnostic communities. Contact NorthEast for an informative demo of HE/LX® Analysis software via the Internet. Sit back, relax, and let our technical professionals show you beat-by-beat how to best use the software.
Arrhythmia Detection:
- AFib – Enhanced Atrial Fibrillation beat detection and analysis
- Ventricular Premature Beats (VPBs)
- Supraventricular Premature Beats (SVPBs)
Maximum time analyzed:
- 14 days
Presentation of data:
- Standard 25 mm/s for 3-lead and 12-lead recordings
- 50 mm/s available for 12-lead recordings
- All 12-lead data displayed for 12-lead recordings
- For oximetry recordings, SpO2 replaces 3rd channel
- Calibration indication can be provided in reports
ST Segment slope:
- Positive or negative slope indicated based on manual setting of cursors by trained operator
LAN Capability:
- Allows multiple users to access a common database of patient data without conflict.
Pacemaker detection:
- Displayed and annotated for the operator
Oximetry:
- When available, displayed by software
Reports:
- Capability of labeling all arrhythmias with the operators input
- Modular with ability for operator to select modules to be included
- All reportable values and labels are editable by the operator
- Ability to remove and/or add sample ECG strips
Four software levels: Basic, Enhanced, Enhanced Plus and Pro.
Up to 14-day Holter analysis: Never miss a beat. Let the software sort and categorize thousands of beats. Consolidate or split the data from multi-day studies along your preferred boundaries. Trends, averages, totals, tables, etc., automatically adjusted.

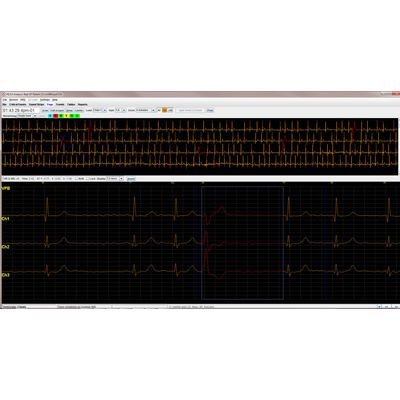

User friendly editing / GUI (Graphical User Interface): Quickly create specific reports and scanning critera for specific clients with configuration management tools. Customized reports match your needs, e.g., contact information, diagnostic terms, morphological terms, key phrases, logos and more.
Customizable criteria and reports: Quickly create specific reports and scanning criteria for specific clients with configuration management tools. Customized reports match your needs, e.g., contact information, diagnostic terms, morphological terms, key phrases, logos, and more.
Flexible licensing options: Supports perpetual, timed, multi-user and PPU (pay-per-use) licensing options.
LX Remote interface
Fastest and most accurate time to report
Import data from non-NEMon Holters: The best Holter analysis software from the company that started it all. The industry standard HE/LX (helix) Analysis software has a unique interface allows rapid integration of new recorder types.
