IKEGAMI TSUSHINKI CO.,LTD. products

1.5G transmission fibre adaptor for Unicam HD which make it possible to migrate HDTV environment by  affordable cost.

3G fibre adaptor for Unicam enables 1080 progressive, 1080 / 100 i double speed and full colour 4:4:4 transmission.

TOP-END 4K STUDIO CAMERA SYSTEM FOR ALL BROADCASTING NEEDS. First in Ikegami‘s next-generation Unicam XE series, the UHK-430 employs three newly-developed 4K-native 2/3 inch CMOS sensors which provide full 3840 x 2160 ultra-high definition resolution plus the depth of field required for studio and outdoor production. The camera is equipped with a B4 bayonet mount compatible with 2/3 inch HD lenses. An optional SE-U430 expander accommodates large studio or OB lenses.

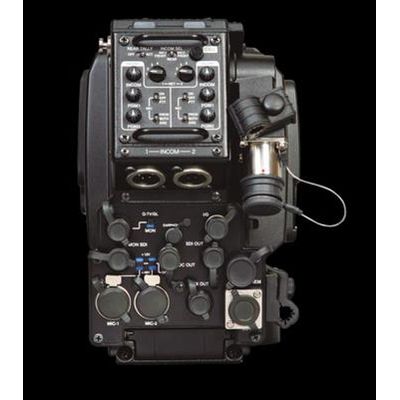

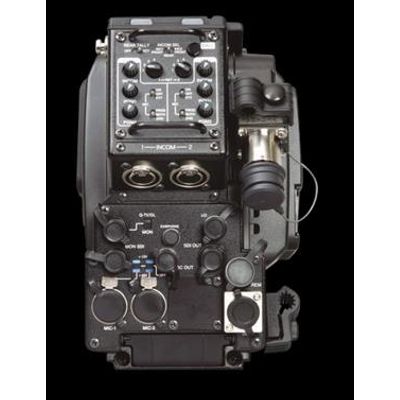

Camera Adaptor for Unicam series HD camera. Enables the integration of battery packs, external recorders and wireless systems.

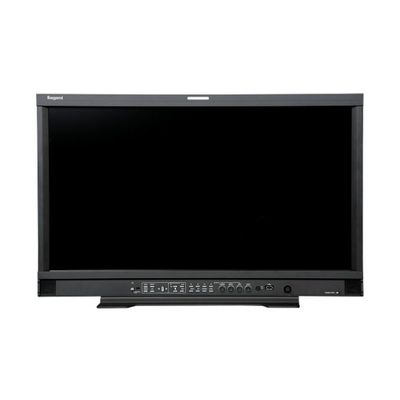

The HQLM-3125X employs an LED-backlight 4,096×2,160 pixel 10-bit resolution UHD LCD panel with a contrast ratio of 1,000,000:1. Single-channel 3G-SDI×5, 3G/HD-SDI and HDMI inputs are available as standard features. When it comes to 3G-SDI×4, square-division and two-sample interleave are available. For other 4K equipment, a dual-channel 12G-SDI input is also available. A wide critical viewing angle of 178°(horizontal/vertical) allows users to see accurately displayed images from any angle. HQLM-3125X can also display test signals such as video waveform and display vertical interval time code. Additional broadcast related functions include an 8-channel embedded audio and closed caption displays.
