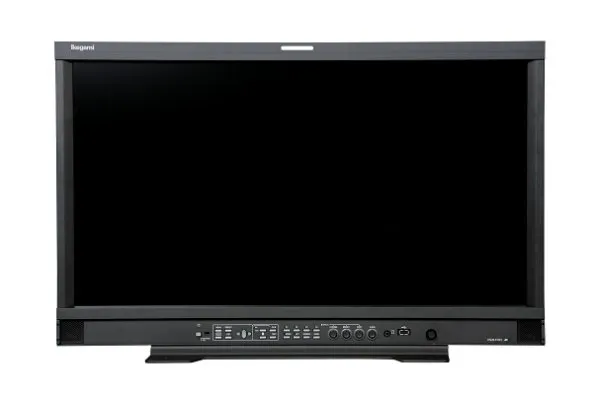

IKEGAMI -Model HQLM-3125X -31-inch 4K/HD Multi-format LCD Master Monitor
The HQLM-3125X employs an LED-backlight 4,096×2,160 pixel 10-bit resolution UHD LCD panel with a contrast ratio of 1,000,000:1. Single-channel 3G-SDI×5, 3G/HD-SDI and HDMI inputs are available as standard features. When it comes to 3G-SDI×4, square-division and two-sample interleave are available. For other 4K equipment, a dual-channel 12G-SDI input is also available. A wide critical viewing angle of 178°(horizontal/vertical) allows users to see accurately displayed images from any angle. HQLM-3125X can also display test signals such as video waveform and display vertical interval time code. Additional broadcast related functions include an 8-channel embedded audio and closed caption displays.
Diverse Input Signal Formats
Available with 12G-SDI, 3G-SDI (SQD/2SI), HD-SDI and HDMI (HDCP2. 2) inputs as standard. *Note: SQD=Square Division / 2SI=2 Sample Interleave
Available with 12G-SDI, 3G-SDI (SQD/2SI), HD-SDI and HDMI (HDCP2. 2) inputs as standard. *Note: SQD=Square Division / 2SI=2 Sample Interleave
UHD LCD Panel
It employs a 31.1-inch 4096x2160 pixel UHD LCD panel with a contrast ratio of 1,000,000:1 (1,000cd/M2) using LED backlight. The monitor has a wide viewing angle allowing critical content evaluation within a horizontal or vertical viewing angle of up to 178 degrees.
It employs a 31.1-inch 4096x2160 pixel UHD LCD panel with a contrast ratio of 1,000,000:1 (1,000cd/M2) using LED backlight. The monitor has a wide viewing angle allowing critical content evaluation within a horizontal or vertical viewing angle of up to 178 degrees.
Faithful Color Reproduction
It provides a wide color gamut corresponding to the ITU-R BT.2020 standard.
*Color space can not be fully displayed.
*Color space can not be fully displayed.
Supports Audio Signals
Audio output is available through internal stereo speakers, stereo headphone jack and stereo l ine out by automatic identification of embedded audio signals multiplexed into the SDI or HDMI signal . An embedded audio level meter can be displayed on screen as standard. *Note: The output can be selected from a pair channels or a 5.1 channel down mix.
Audio output is available through internal stereo speakers, stereo headphone jack and stereo l ine out by automatic identification of embedded audio signals multiplexed into the SDI or HDMI signal . An embedded audio level meter can be displayed on screen as standard. *Note: The output can be selected from a pair channels or a 5.1 channel down mix.
Variety of Useful Functions
- Multi-viewer : There is an available multi-display for up to 4 screens when inputting HD-SDI or 3G-SDI signals.
- Time Code : Time code (VITC/LTC) multiplexed into the HD-SDI signal can be displayed on the screen.
- Remote Control Function : The monitor can be controlled with the use of a parallel, serial, or wireless remote controller.
- WFM / VSC : Waveform and Vector displays are available on screen.
- Test Pattern : A variety of test patterns are built-in.
- USB Memory : Various data such as menu, preset and captured image can be stored and copied in a USB memory.
- ASC-CDL (American Society of Cinematographers Color Decision List) : This picture quality adjustment feature can exchange color-grading information, based on the CDL specifications set by the ASC Technical Committee.
Display panel
- Display Performance : a-Si TFT LCD
- LCD Panel : Stripe
- Number of Pixels : H4096xV2160 pixels
- Pixel Pitch : W0.1704xH0.1704 mm
- Viewing Angle : 178°(up&down, left&right) ( CR≥10)
- Number of Display Colors : 1.07 billion colors (RGB each have 10-bit)
- Contrast Ratio : 1,000,000:1(typical)
- Brightness (panel) : Max. 1,000cd/m2
- Display Size : 17:9 W698xH368mm
- EOTF : ITU-R BT.2100, SMPTE ST.2084, 2.2, 2.4, 2.6, S-Log, S-Log3, ACES Proxy
- Color Space : ITU-R BT.2020*, ITU-R BT.709, DCI-P3 D65*, DCI-P3*, ACES*, Adobe RGB*, S-Gamut, S-Gamut3.Cine, Panel
- *Color space can not be fully displayed.
- Color Temperature Setting : D65 / D93 / USER setting (Files 1 to 8)
- Power Requirement : AC100 to 120 / 200 to 240V±10%, 50/60Hz
- Power Consumption : approx. 450W
- Ambient Temperature : 0? to +35? (32? to +95?) (20 to 85% humidity non-condensing)
- Storage Temperature : -10? to +50? ( 14? to +122?) (10 to 85% humidity non-condensing)
- Dimensions : W762 × H467 × D172mm (W30 × H18.4 × D6.8 inch)
- Weight : 30kg(66.14lbs)
Input & Output Signals (standard)
- 12G-SDI : 2 BNC inputs / 2 BNC outputs (Active Loop Through)
- Max.70m with 5.5CUHD cable
- 3G-SDI /HD-SDI : 5 BNC inputs (2 shared with 12G-SDI) / 5 BNC outputs (2 shared with 12G-SDI) (Active Loop Through)
- HDMI : 1 input (HDCP2.2)
- Audio Display : Embedded Audio Level Meter Display (8ch)
- Speaker Rating Output : 1W+1W or more
- Analog Audio Output : Available (Stereo)
- 5.1ch Surround Down-mix Output : Available
- Headphone Output : Available
