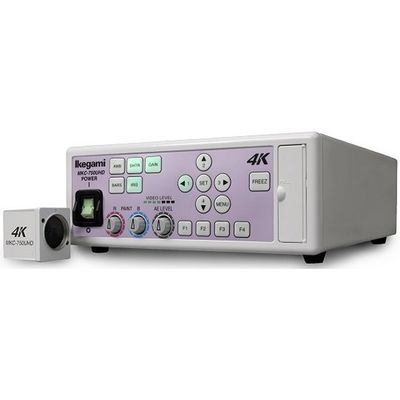

IKEGAM - Model MKC-750UHD Type H - 3CMOS 4K Medical Grade Camera with 12G-SDI, HDMI 2.0 outputs
MKC-750UHD type H employs 4K (3840 x 2160) 3CMOS sensors for the highest image quality (horizontal resolution 1,600 TVL, S/N 58dB) and two times higher sensitivity compared to conventional models (2,000lx/F11:LINE MIX ON) with 12G-SDI, HDMI 2.0 outputs.
Most popular related searches
- Optics : RGB prism
- Image Pickup Device : 1/3-inch, CMOS x 3
- Lens Mount : C-Mount
- Output Signals : 4K:3840x2160p 50/59.94Hz
- HDMI (4K/2K switchable) 1ch
- 12G-SDI : 1ch
- 3G-SDI (Level A) x4
- HD 1920x1080p/i 50/59.94Hz 3G/HD-SDI 2ch DVI 1ch
- External Reference : HDTV Tri-Sync 1ch
- Camera cable (option) : Single : MCCGHPP-050 (5m)
- Single : MCCGHPP-070 (7m)
- Combination : MCCGHPP-050 (5m) + MCCGCJP-100 (for extension 10m)
- Dimensions / Weight : Camera Head:
- W34 × H40 × D40mm (excluding protrusions) / 100g approx.
- Camera Control Unit:
- W210 × H80 × D270mm (excluding protrusions) / 3kg or less
- Power Requrerment : AC 100V - 230V ±10% 50/60 Hz
- Power Consumption : 29W
- Safety Approval : EN60601-1, ANSI/AAMI ES60601-1
- Performance
- Resolution : 1600 TV Line
- S/N : 58dB (Gamma/Detail OFF)
- Sensitivity : 2000 lx F11 /3200K or more (LINE MIX ON)
- Function
- Electronic Shutter (Rolling Shutter) : Manual:1/100~1/10000
- Auto:1/100~1/10000
- Slow:1/4, 1/8, 1/15, 1/30 field/sec
- Gain : -9dB~24dB (3dB steps)
- Automatic Functions : Auto White Balance
- Auto Gain Control
- Auto Iris Control
- Auto knee
- Image Correction Functions : Shading Correction, DTL Correction, Flare Correction, Auto knee
- Scene File : 4 files (by CCU front switch) Setting data can be stored in USB memory
- H/V Centering : Built-in
- Digital Zoom : 1.1x -4x
- Color Bar : Built-in
- Color Correction (paint) : R-channnel / B-channel Correction available via CCU front switch
- Brightness Adjustment : Available via CCU front switch
- Freeze Function : Built-in (Controlled by CCU front switch or optional foot switch), still image / live image can be exchanged
- Image Level Indicator : 7 steps (by LED display on CCU)
- 4K High Resolution : By equipping the CCU with 4K (3840x2160) digital processing, the MKC-750UHD produces superb resolution with four times the sample rate of conventional HD (1920x1080). (Horizontal Resolution 1600TVL, and S/N 58dB)
- 12G-SDI, HDMI 2.0 Outputs : 12G-SDI and HDMI 2.0 outputs ports for creating UHD signals up to 4Kp50/60. Also various type of outputs (4K: Quad Link 3G-SDI, 12G-SDI, HDMI/HD: HD-SDI and DVI) for flexible integration.
- High Sensitivity : When providing 4K resolution, the MKC-750UHD has a sensitivity of F11 (LINE MIX ON) at 2000 lx.
- Compact and Lightweight Camera Head : Although the MKC-750UHD is a 4K camera, it has a very compact and lightweight camera head.
- Automatic Iris Control : By connecting an exclusive camera adaptor, the auto iris control function can be used. Optical Iris in this connection.
- Automatic Electronic Shutter System(Shutter speed) : The continuously variable electronic shutter can be used with a manual iris lens. This Iris functionality maintains optimized performance over a wide range of lighting conditions.
- Auto Gain Control : The gain can be adjusted automatically to provide the proper picture brightness when the light level is not enough.
- Flip and Turn Function : The image s can be flipped horizontally and vertically by the digital processing to correct the TV image against the inversion caused by optical instruments. Remote control is available via an optional external unit such as a foot switch.
- Antibacterial Coating : The camera head and CCU (camera control unit) are coated to improve infection control.
- Picture Freeze : By pressing the Freeze button on the CCU, it is possible to hold the current image.
- Scene File ;` Four switches are available on the CCU to custom assign to control functions important to the user.
- Digital Zoom : Electronic zoom for the center of an image is available, up to four times.
- Level Indicator : Video level can be checked and adjusted using a level indicator on the CCU.
