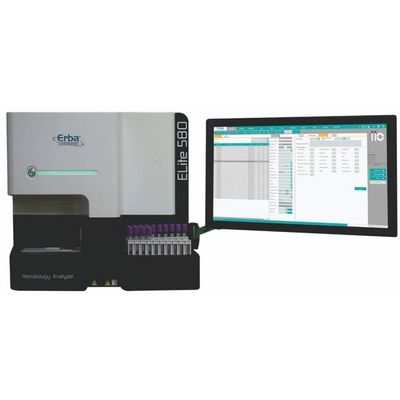

ELite - Model 580 - Advanced Hematology Analyzer

• Compact, powerful and affordable
• 29 parameters, 5-part differentiation
• Up to 80 samples per hour
• 20 µl sampling volume
• Whole blood, capillary blood and prediluted
• Rack closed tubes / manual opened tubes
• Reagent inventory management thru RFID
• Large LCD display ~ 15“
• Connectable to LIS

Parameters

• WBC, LYM, LYM%, MON, MON%, NEU, NEU%, EOS, EOS%, BAS, BAS%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, PDW, MPV, PCT, P-LCR, P-LCC;
• 4 research parameters: ALY, ALY%, LIC, LIC%
• 1x 3D scattergram, 3x 2D scattergram
• and 3 histograms

Methods of measurement

• Impedance method for WBC, RBC, PLT counting; independent Basophil channel
• Semiconductor-laser-based flow cytometry for white blood cells differential
• Colorimetric method for Hemoglobin using cyanide-free reagent

Calibration and control

• 3 modes of calibration: manual, automatic using calibrator, automatic using fresh blood samples
• 3 levels of control blood (low, normal, high) for daily quality control measurement with Levey-Jennings charts
• User definable QC range
