Newclip Technics - Model S - Alians Clavicle

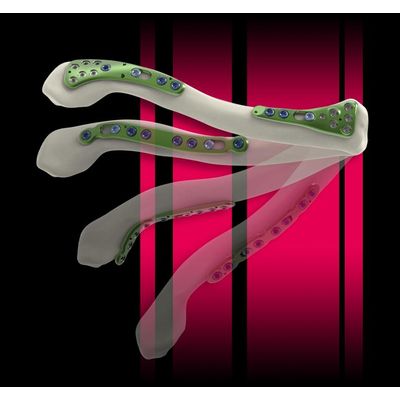

A COMPLETE SOLUTION FOR THE MANAGEMENT OF FRACTURES AND OSTEOTOMIES OF THE CLAVICLE

SUPERIOR APPROACH EXTRA-DISTAL PLATES
2 sizes of superior extra lateral plates (right and left)

Polyaxial holes for Ø2.8 mm locking screws
Oblong hole for Ø3.5 mm non-locking screws
Holes for Ø3.5 mm locking screws and Ø3.5 mm non-locking screws

SUPERIOR APPROACH LATERAL PLATES
Three plate designs are available:

Two sizes of asymmetrical, non-formable top side plates (1).
One size of asymmetric, formable, lateral upper plate (2):
Allows for better bone adaptation in cases of complex fractures and revision on pseudoarthroses.
Allows additional fixation of coracoclavicular disjunctions by suture.
A lateral superior plate size with suture holes, asymmetric (3) :
Allows for additional suture fixation of coracoclavicular or acromioclavicular disjunctions.
These three plate models are notably equipped with :

Polyaxial studs for Ø2.8 mm locked screws (in the epiphyseal area).
Oblong studs for non-locking screws Ø3.5 mm.
Plugs for Ø3.5 mm locked screws and Ø3.5 mm unlocked screws (in the diaphyseal area).

SUPERIOR APPROACH MEDIO-LATERAL PLATES
2 sizes of superior lateral midshaft plates (right and left)

1 size of superior lateral midshaft bendable plate (right and left):

Bending area, allows optimised adjustment in case of complex fractures and pseudoarthrosis
Polyaxial holes for Ø2.8 mm locking screws
For the two types of plate:

Oblong holes for Ø3.5 mm non-locking screws
Holes for Ø3.5 mm locking screws and Ø3.5 mm non-locking screws

SUPERIOR APPROACH MIDDLE THIRD PLATES
Superior midshaft plates:

1 standard size
2 narrow sizes
3 sizes of superior midshaft bendable plate:

Bending area, allows optimised adjustment in case of complex fractures and pseudoarthrosis
For the two types of plate:

Oblong holes for Ø3.5 mm non-locking screws
Holes for Ø3.5 mm locking screws and Ø3.5 mm non-locking screws

SUPERIOR APPROACH MEDIAL PLATES
1 size of superior medial midshaft plate

Polyaxial holes for Ø2.8 mm locking screws
Oblong hole for Ø3.5 mm non-locking screws
Holes for Ø3.5 mm locking screws and Ø3.5 mm non-locking screws

ANTERIOR APPROACH MIDSHAFT PLATES
Plate dedicated to midshaft:

1 size of anterior midshaft bendable plate (symmetrical)
Plates dedicated to lateral and midshaft positioning:

1 size of anterior lateral and midshaft bendable plate*
1 size of anterior lateral bendable plate*
Polyaxial holes for Ø2.8 mm locking screws
Oblong hole for Ø3.5 mm non-locking screws
Holes for Ø3.5 mm locking screws and Ø3.5 mm non-locking screws
* Also available as totally Ø2.8 polyaxial versions

• A complete range for superior and anterior approaches
• A dedicated instrumentation, suitable for the requirements of clavicle treatment
• Anatomical implants
• Polyvalent locking platform
• Specific options: auto-stop drills and drill guide for butterfly fragment
• Single use solution: Initial C
