ARACUS - Model Lite - Amino Acid Analyzer System
Small sample throughput and less eluent consumption
- Detectors with maintenance-free LED technology
- Chloride-free and citrate-free buffer system
- Extra small eluent consumption
- Pump allows the simultaenous operation of two fluicid lines
- Manual injection mode
- Easy access to all components of the entire system

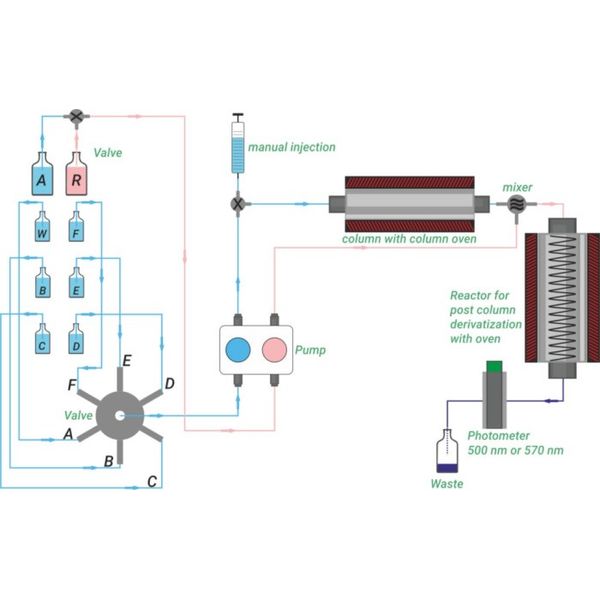

Method
Post column derivatization with ninhydrin
Reproducibility of retention time & area:
< 0.3 % RSD
ca. 1 % RSD
Detection limit
< 2 nmol/mL
Reliable analysis results for a wide range of applications
Qualitative and quantitative analysis of amino acids is required for a wide range of applications. Our ARACUS systems are designed for use in clinics, quality control, the pharmaceutical and food industry as well as in research. The ARACUS AA analyzers use the most precise and reproducable methodology, with which you can get up to 44 AA with an “Retention time reproducibility (RSD)” of less than 0.1%. Choose your desired configuration with the aracus lite, classic and advanced – depending on the complexity of your amino acid analyses.
Amino Acid Analyzers for all major lab applications
- Detectors with maintenance-free LED technology (440 & 570 nm) / no UV/VIS lamp degeneration and lamp exchange
- Chloride-free and citrate-free buffer system / less aggressive to the components of the liquid handling tubes, fittings and connection
- Small eluent consumption / about 200 µL/min in analysis mode
- High sensitivity of amino acids / choice of two sensitivity detector levels
- Level sensors for eluents / warn the user if needed fluidic volume is too low for planned analysis
- Easy access to all components of the entire system

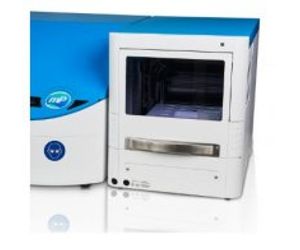

Autosampler
The ARAUS lite can be upgraded later on with autosampler.

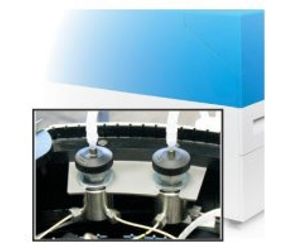

High pressure side prime and purge valves in eluent and reagent flow.
Validation documents IQ/OQ and PQ for ARACUS.

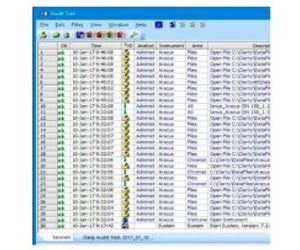

Manual and automatic peak integration with integrated IQ/OQ procedure for software (only available with software Clarity).
It supplies the main unit and eluent box with a protective gas atmosphere by reducing the presence of atmospheric oxygen to enhance the signal to noise ratio.

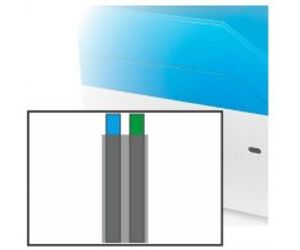

The existing 500 or 570 nm photometer will be replaced by a photometer with 440 nm and 570 nm wavelength.
- method: post column derivatization with Ninhydrin
- autosampler: ARACUS lite can be upgraded with autosampler;
- 2 racks, each of them with space for 48 vials, sample cooling dosage in 3 different injection modes: full loop (100 μL), partial loop (5 - 50 μL), microliter pickup (1 - 35 μL)
- column: stainless steel, cation exchange resin reproducibility of retention time < 0.3 % RSD, reproducibility of peak area ~ 1.0 % RSD
- column oven: 20 - 100 °C, accuracy 0.1 %
- reactor temperature: 20 - 140 °C
- spectroscopic detection: measuring range: high, low LED photometer (570 nm or 500 nm), or dual photometer (440 # 570 nm), 8 years warranty, flow cell: 10 μL volume, 3 years warranty
- detection limit: < 40 pmol / 20 µL with Ninhydrin
- quantification limit: > 100 pmol / 20 µL with Ninhydrin
- pump system: single pump reproducibility of low rate: 0.1 % RSD at 100 μL/min, max. pressure: 400 bar | flow rate: 0.01 - 10.00 mL/min
- maximum operating pressure: 120 bar
- ready to use kits: kits including eluents, reagent and additional dilution buffer, ammonia adsorber and separation columns for 500 - 1000 runs
- columns & eluents: Compatible with all High-Speed and High-Resolution columns, operating with all eluents based on different ionic strength (Li, Na, K)
- control software & data aquisition: Clarity (21 CFR part 11 compliant) or AminoPeak
- dimensions, weight, power: 1080 x 370 x 375 mm*, 60 kg, 110 - 230 V
*800 mm with opened main unit
