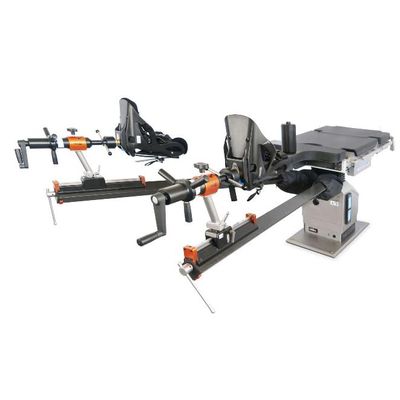

Nuova -Carbon Fiber Orthopedic Tractor Extension
Nuova BN has determined a new way of conceiving room operations by creating a series of tables and accessories in carbon fiber. The traction units are an example of this, they exploit the excellent qualities of a highly technological material to be used in orthopedic surgery and traumatology of choice, thanks to the characteristics of total radiolucency.
An accessory designed to simplify the assembly, the configuration during the intra-operative phases, the positioning in the space of the single traction units and for the subsequent disassembly, by a single operator.
In fact, thanks to the crank mechanism with two degrees of
adjustment, the surgical team adjusts the traction impressed on the limb
with maximum simplicity, speed and convenient access to the
patient during the operating phases.
The Nuova BN traction unit has been designed to be grafted directly to the column of the tables in the electromechanical or manual version so that the structure becomes solid and stable.
- Support Bars for connection on high or low position respect to the operating table top.
- Solid structure in stainless steel.
- The different placements allows very good limbs traction.
- Best use of C-arm.
Composed by:
- A509/A Traction pair bars for A52 with 4 joints
- A508 Pair of tractor devices
- A517/A-C Central part for the connection of pelvic support
- A516 Pair of stainless steel vertical posts
- A01/E ( n.2 ) rotating clamps for connection on round bar on rails mm 40 x 40
- A01/A (n.2) Clamps for fastening items A516
- A503 Off-set counter extension roll for connection on A500
- A501/C Shaped pad for pelvic support A500
- A500 Standard pelvic support mm 400 x 240
- A93/A Orthopaedic support with roll for healthy leg, bar A83+A83/A included
- A94 Single leg support in stainless steel for healthy leg
- A517/B universal lock of support traction bars
- A517/D traction bars locking Key
- A515 Trolley for transport and storing of traction bars
