Scoreflex - Model NC - Coronary Dilatation Catheter

Scoreflex NC is a focused force dilatation balloon with a dual-wire system which creates a focal stress pattern to facilitate safe and controlled plaque modification at lower resolution pressure.

• Advance a standard guidewire across the target lesion.
• Advance Scoreflex over the guidewire and cross the target lesion.
• Inflate the Scoreflex balloon in a stepwise fashion.
• Withdraw the deflated Scoreflex once the desired result is achieved.

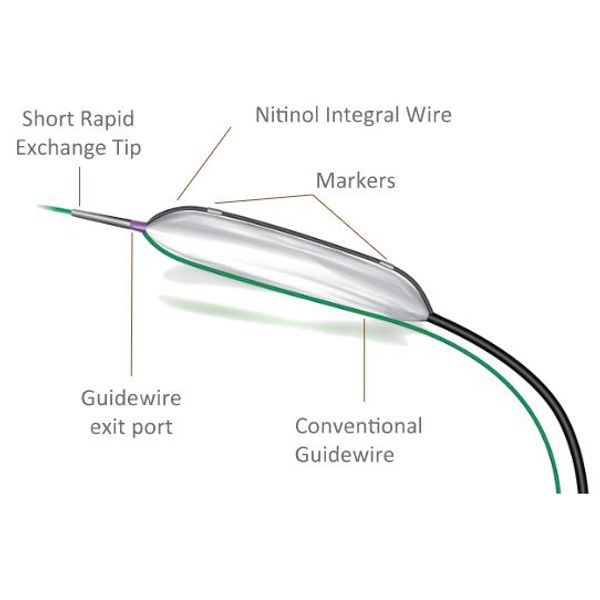

TIP
A short rapid exchange tip with the guidewire exit port proximal to the tip

WIRE
A nitinol integral wire, welded from tip to hypotube, serving as one of the scoring elements

MARKERS
Two radiopaque markers on the integral wire aligned to the balloon shoulders

Continuous hub-to-tip metallic construction for enhanced pushability, with a combination of hydrophilic and hydrophobic coatings to minimize friction

Hydro-X hydrophilic coating is a water-absorbing, very slippery coating that reduces friction during lesion crossing
IMPROVES CROSSABILITY

Invio hydrophobic coating is a water-repelling, slippery coating that reduces guidewire friction
IMPROVES TRACKABILITY

Scoreflex is a focused force dilatation balloon that comes with a dual wire system which enables effective dilatation under lower inflation pressure. For optimal results, a gradual step-up inflation protocol should be adopted

Applications

• Lesion preparation for stents, scaffolds, drug-coated balloons
• Calcified and fibrotic lesions
• Ostial lesions
• Bifurcation lesions
• Long diffused lesions
• Small lesions without need of stenting
• In-stent restenosis

• Proximal Shaft Diameter: 2.1F
• Distal Shaft Diameter: 2.7F
• Leading Tip Length: 11 mm
• Balloon Material: Nylon
• Balloon Folds: 3
• Compliance: Non-compliant
• Crossing Profile (Ø3.0 mm): 0.034”
• Marker Bands: 2
• Scoring Elements: 0.011” integral wire; 0.014” conventional guidewire
• Coating: Hydrophilic (tip & distal shaft),
• Hydrophobic (guidewire lumen & balloon)
• Nominal Pressure: 12 atm
• Rated Burst Pressure: 20 atm
• Guidewire Compatibility: 0.014”
• Guiding Catheter Compatibility: 5F (Ø1.75 mm – 3.5 mm), 6F (Ø4.0 mm)
