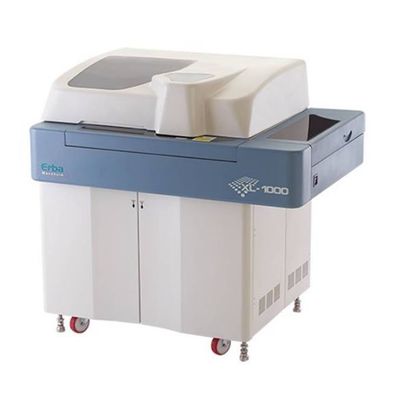

Erba - Model XL 1000 - Fully Automated Clinical Chemistry Analyzer
XL 1000 with the throughput of upto 1040 tests per hour is the ideal instrument for centralizing the complete biochemistry testing load on a single fully automated platform. Increased walk away productivity and less human intervention make it an ideal analyzer for large laboratories. Equipped with all necessary advanced features that one expects from a high end fully automated chemistry analyzer; sample loading through rack system, cooled calibrator and control carousel, low reading volume of 150 µL, diffraction grating with 15 wavelengths from 340 nm to 800 nm and user-friendly software, to optimize and reliably run the daily lab workload. XL 1000 is a "dream come true" workhorse for laboratories with increased workload and the perfect solution.
- Fully Automatic, Discrete, Patient prioritized, Random Access Clinical Chemistry Analyzer with throughput of 1040 tests/hour
- 3 Reagent capabilities
- 147 long life Hard Glass cuvettes
- Separate Carousel for STAT samples
- Onboard refrigeration for reagents
- Extensive database for storing patient data and Q.C. results
- Primary tube sampling with bar code identification
- 9 stage laundry for cuvettes wash
- 150 samples can be loaded at a time through rack system
- All routine Clinical Chemistries
- Specialized chemistries like HbA1c, ApoA1, ApoB, Lp(a) etc
- Immunoturbidimetric Assays like ASO, RF, CRP, etc.
System
- Discrete, open, automated, random access, patient prioritized, 1/2/3 reagent system
- DISPENSING OF SAMPLES AND REAGENTS
- Sample volume: 2-60 µl (0.1 µl step), 70 µl with ISE
- Reagent volume: 120 µl – 550 µl
- 3 dispensing probes ( R1, R2/R3) equipped with liquid -level sensor and crash detector
- Auto-dilution of samples and calibrators
- Clot detection
Samples
- Serum, urine, plasma, CSF and other
Economy
- Minimum reaction volume: 180 µl
- Reusable reaction cuvettes
Mixing System
- 2 independent stirrers
- 3 user selectable mixing speeds
Quality Control
- 4 levels of control material can be used
- Levey-Jennigs graphs
- Twin Plot diagrams for monitoring of systematic and random error
Reaction unit with wash station
- 147 reusable hard glass cuvettes
- Possibility of replacement of individual cuvette
- Wash station – cuvette rinsing and drying in nine-step procedure
- Automatic cuvette blank measurement before analysis
Sample Autoloader
- 23 racks
- 115 sample positions on automatic autoloader
- Primary tubes 5, 7 and 10 ml, vacuum system tubes
- Barcode reader for sample identification
2 Reagent trays
- With 43 cooled position each
- Barcode reader for reagent identification
- 20 ml, 50 ml reagent containers, 5 ml tube with adaptor
- Option to use one reagent for several test simultaneously
Stat Tray
- 45 positions
- Can be used for blank, controls, STAT samples
Software
- Convenient user interface
- Connection to LIS
- Programmable auto-start from sleep mode including automatic daily maintenance
- Statistical methods of processing results
- Data export in selected format
Measurement Monitoring
- Colour indication of sample analysis
- Possibility of monitoring the reaction in real time
- Reagent volume monitoring
- Informative reports on ongoing analyzer status
