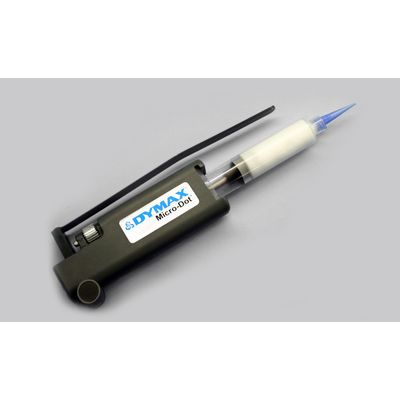

Micro-Dot -Hand-Held Manual Syringe Dispenser

FromDymax
SHARE

The Micro-Dot™ hand-held syringe dispenser delivers accurate and consistent fluid deposits from pre-packed 3, 5, and 10 mL disposable syringes. This portable syringe dispenser can be set to dispense a wide range of fluid shot volumes. Once a volume is set, the positive displacement design allows it to be repeated indefinitely with acute consistency. The Micro-Dot manual syringe dispenser is lightweight and can be used in any environment. With the thumb actuated and lever-actuated designs, users can choose the best actuation option for their application. Molded taper dispensing tips are recommended for achieving the most accurate shot size with the Micro-Dot. Dymax hand-held fluid dispensing systems are engineered for optimal performance and long service life.

Most popular related searches
  • Portable; can be used anytime, anywhere
  • Quick and easy product changeover
  • No risk of material contamination during dispense
  • Control over dispense volume, assuring accuracy
  • No power or air required
  • Utilizes disposable syringe as fluid reservoir
  • Positive displacement dispensing with adjustable shot volume
  • Dispenses a wide range of low-to-high viscosity materials
  • Safety lock


Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

Property: Specifications

  • Dimensions (L x W x H): 4.5 in x 0.87 in x 2.13 in (11.4 cm x 2.2 cm x 5.4 cm)
  • Weight: 2.8 oz (81.3 g)
  • Minimum shot size: 0.0003 mL (400 cP material with 25 gauge taper tip)
  • Maximum shot size: 0.170 mL (400 cP material with 14 gauge taper tip)
  • Availability: Globally Available (Manual dispenser does not require CE Mark in Europe.)
