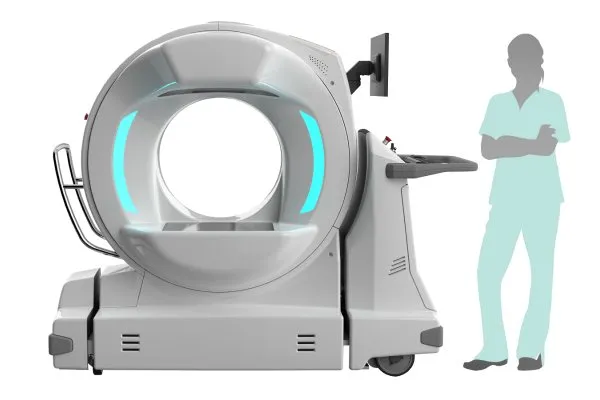

SeeFactor -Model CT3 -High Definition Volumetric Imaging (HDVI) System
HDVI (High Definition Volumetric Imaging) is a new hybrid technology in CT (Computed Tomography) that provides unprecedented diagnostic and interventional information for clinicians. EPICA’s SeeFactor CT3™ is a multi-modality, mobile imaging platform that utilizes HDVI technology to deliver a 3D map of densities with spacial resolution that is the same in all three dimensions, with contrast equivalent to conventional CT.
Most popular related searches
soft tissue ablation
diagnostic imaging
digital radiography
soft tissue
knee hip
lower extremity
human diagnostic
degenerative disease
computed tomography
tissue ablation
- FDA 510(K) Cleared for use in human diagnostic imaging
- Multi-Modality in a single, lightweight imaging platform
- High-Definition 3D Volumetric Imaging capability
- Mobile & Compact platform: suitable for ICU, ER/Trauma, OR, and Imaging Rooms
- Mobility : Turn any room into an imaging room with SeeFactorCT3′ compact, mobile design. Easily moves through standard doors by one technician.
- Multi-Modality : 3-in-1 imaging platform that provides superior 3D diagnostic imaging (soft & hard tissues), digital radiography and fluoroscopy capabilities.
- 25-75% Less Radiation : EPICA’s proprietary “pulsed technology” significantly reduces the radiation dose received by the patient and surrounding healthcare delivery team.
- 100% Real Data : Non-interpolated (gapless, 100% real) image data delivering extraordinary isotropic image resolution as fine as 0.2mm in soft & hard tissue.
- Vimersion : Fly through” the anatomy: Dicom data pulled directly from EPICA’s imaging platform and rendered in a virtual reality environment.
- Robotic Surgical Assist : Exceptional stability & surgical accuracy via direct mechanical link with imaging system managed by our propitiatory software control system.
DIMENSIONS
- Height: 5.4 ft (164cm)
- Width: 3 ft (92cm)
- Length: 6.5 ft (198cm)
- Weight: 926 Ibs (420kg)
- Power: 220V, 20 amp, Single Phase
TECHNICAL DETAILS
- HDVI (CT) Field of View: Up to 35cm radius x 1.08m length
- HDVI (CT) Resolution: 0.1mm – 0.6mm in 3 dimensions with true isotropic voxels
- HDVI single data sets output – no need for reprocessing multiple planes
- Fluoroscopy (full-featured): 1-30 fps, high resolution with auto-brightness, 3-dimensional orientation adjustment, DSA, Road-mapping, Tip-Tracking, Auto-Collimation
- Digital Radiography: Scan Speed: 4-24 seconds for first 15cm, +13-30 seconds for each additional 15cm
DIAGNOSTIC APPLICATIONS
Diagnostic (HDVI CT) including, but not limited to:
- Cranial-Head
- Neck
- C-Spine
- Spine (thoracic, lumbar)
- Upper & Lower Extremities
- Foot
- Ankle
- Knee
- Long Bones
- Hand
- Elbow
- Shoulder
- Post-Operative
- Trauma
- Lung (Thoracic)
- Oncology
- Vascular
- Degenerative Disease, and more
INTERVENTIONAL APPLICATIONS
Interventional (HDVI CT + Fluoro) including, but not limited to:
- Precision guided injections
- Biopsies
- Soft tissue ablation
- ENT
- Shunt placement
- Neuro-mod implant
- Vascular (Peripheral)
- Trauma
- Sports Medicine
- Joints (knee, hip)
- Arthrography
