The VI Probe PL is an advanced high-resolution inline endoscope designed for industrial applications within both laboratory and production environments. It allows real-time monitoring of particle sizes and shapes directly within active processes through efficient image analysis. This robust instrument supports a wide particle size range from 2 to 300 µm, with additional process connectors like flanges and retractable fittings such as the Knick Ceramat W155 to enhance its versatility. Constructed using durable materials such as 1.4404 stainless steel and a sapphire probe tip window, the probe is equipped to handle temperatures up to 130°C, extendable to 450°C with cooling accessories. Additionally, it withstands process pressures up to 10 bar, with customization options for higher pressures. The probe incorporates a 5.1 MP machine vision camera with a GigE interface, operating at 15 fps, and is equipped with Adaptaflex cable protection for durable field usage.

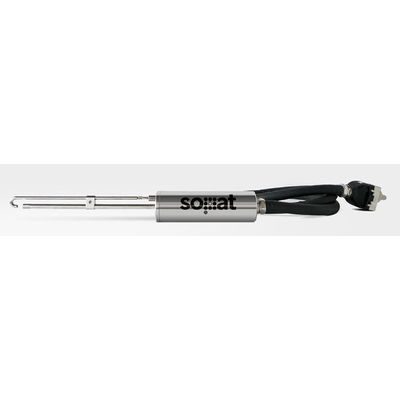

The Pl Probe is a high-resolution inline endoscope for various industrial applications in laboratory or production environments.
This probe can be directly inserted into a running process to retrieve particle size and shape information via image analysis. The probe can be equipped with cooling and purging tubes to increase its applicability range. There are also numerous process connectors available, such as flanges, compression fittings, and the Knick Ceramat W155 retractable fitting.
Dimensions & Weights
Materials
Technical Data :
Approvals
