Medartis AG

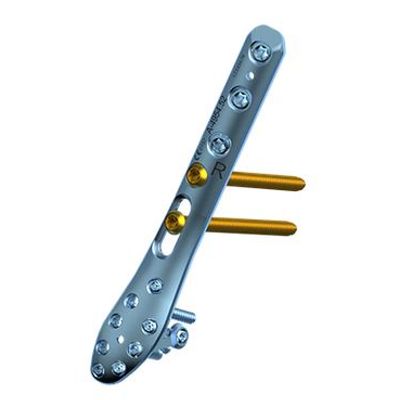

TriLock - Model 2.8/3.5 - Lateral Distal Fibula Plates
FromMedartis AG
Plate has a combination of 2.8 and 3.5 mm screws. 20° posterior-anterior oblong hole and round hole with recess for syndesmotic screw fixation. Eight 2.8 Trilock screws in the thinner distal section. 2.8 mm flap for fixation of Wagstaffe fragment.
Most popular related searches
Color Code
- orange: 2.8
- green: 3.5
- Allows for the capture of small comminuted fractures in the head while still having the required strength in the shaft.
- 3.5 mm syndesmotic screws can always be placed in the preferred position.
- Several screw fixation options in the distal fragment.
- Wagstaffe fragment is fixed or buttressed in position without having to use an independent screw
