BMSEED -Model MEASSuRE-X -Micro Electrode Array Stretching Stimulating und Recording Equipment
FromBmseed
Mechanics Module: strain rate up to 80/s, strain up to 50%. Imaging Module: frame rate: 2,000fps. Electrophysiology Module: 2x60 channels. Very rapid pathological stretch of cells to reproduce biomechanics of an injury such as traumatic brain injury (TBI) or spinal cord injury (SCI); assessment of cell health and function using electrophysiological measurements; visualization of cells and cellular processes during stretch.
Most popular related searches
traumatic brain injury
spinal cord injury
brain injury
spinal cord
electrophysiology monitoring
neurodegenerative disease
muscle injury
spinal injury
electrode array
electrophysiology
- Traumatic brain injury and repeated concussions
- Spinal cord injury
- Neurodegenerative diseases
- Muscle injuries

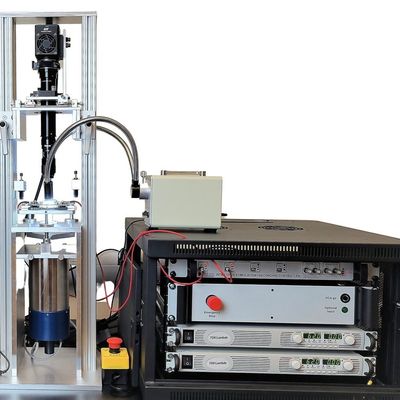

MEASSuRE is a complete solution for researchers to stretch cells/tissue mechanically, image them optically, and record/stimulate electrophysiological activity, separately or concurrently.
Cell Stretching
- radial, uniaxial
- custom strain fields
- one fast impulse stretch or cyclical stretch
- up to 50% strain
- at strain rates of up to 80/s
- any stretch pattern
- high reproducibility
Imaging
- before, during and after stretching
- up to 2,000 frames per second at 2MP resolution
- custom, easy-to-use software to independently measure the tissue strain
Electrophysiology
- electrodes stretch with the cells/tissue
- recording/stimulation before, during, and after stretching
- comparison of pre and post stretch electrophysiological activity (normalization)
- soft microelectrode arrays (MEAs) on elastomeric silicone substrates
- standard microelectrode arrays (MEAs) on rigid substrates available
