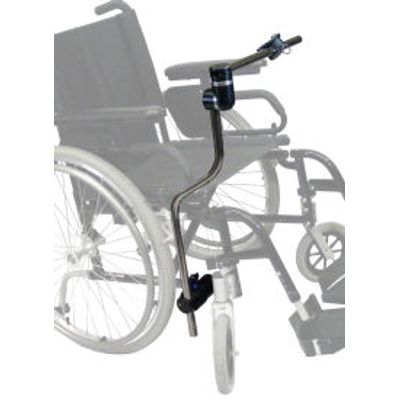

Model M75-FM - Mini Folding Mount

The Mini Folding Mount, as the name suggests, folds the horizontal tube down to the outside. The folding joint between the two mount tubes performs a 2-step folding sequence to bring the tubes parallel. When folded and removed from the chair the Mini Folding Mount is a more compact unit for storage. The mount is non-directional and may be installed on either side of the wheelchair. The Frame Clamp Assembly is composed of a Frame Clamp Inner Piece and a Removable Frame Clamp Receiver (RFCR). The Inner Piece is clamped or bolted to the wheelchair frame while the Receiver holds the Vertical Tube. The mounted device is attached to a quick release plate, either directly or with use of a specific adapter, and attached to the Horizontal Tube of the mount assembly by means of a Quick Release Base that secures the device and allows for quick detaching of the device from the mount.
