Fisioline Radiant - Monopolar - Bipolar - Tripolar Systems for T.E.C.A.R. Therapy

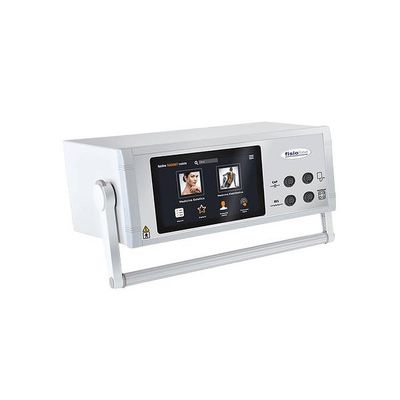

Fisioline RADIANT® is a radiofrequency generator which administers energy via the passing of an electrical current with monopolar, bipolar and tripolar, capacitive or resistive effects. The basic principle of radiofrequency is heat induction by means of the administration of electromagnetic waves to stimulate natural rehabilitation and anti-inflammatory processes within biological structures.
Available versions:
- Fisioline RADIANT® 200: 200W – 350VA of power
- Fisioline RADIANT® 300: 300W – 400VA of power
- Fisioline RADIANT® 400: 400W – 450VA of power
A dynamic, compact and portable T.e.c.a.r. Therapy.
Fisioline RADIANT® Mobile: portable version with 200W – 350VA of power and a practical carrying case.
The different modes of thermal energy generation and transmission, capacitive and resistive, related to the target tissue typology and to the therapeutic objectives, allow the therapist the optimal ways to use the antalgic,trophic and mechanical properties of the checked administration of the heat, in the different phases post-traumas until the complete functional and anatomical recovery.
Capacitive mode
- Medium-low levels: acute pathologies, muscular traumatology, edema treatment
- Higher levels: chronic pathologies, pain treatment
Resistive mode
- Osteoarticular pathologies
- General traumatology
- Arthrosis, enthesis
- Tendinitis, capsulitis, bursitis
We semplify your operation with new capacitive bipolar applicators
An exceptional feature of FISIOLINE RADIANT® are the circular capacitive bipolar handpieces. This application technique, which does not require the reference electrode and not even the conductive cream, allows to define the treated area with resistive method by concentrating the energy exclusively on the affected area.
In addition to the capacitive bipolar applicators, FISIOLINE RADIANT® offers the possibility to opt also for resistive bipolar and tripolar handpieces that, in particular applications, allow to optimize the distribution of the energy.
Continued and pulsed emission
Fisioline RADIANT® combines the continued and pulsed emission keeping under control the hyperthermia effects. Necessary in the treatment of musculoskeletal pathologies in the acute phase or in those treatments that have to be mainly athermic such as recent traumatic injuries.
The pulsed mode allows the operator to set the DUTY-CYCLE (adjustable from 10% up to 90%) and therefore erogation and pause times, customizing the therapy to the needs of each patient.
Automatic mode
Beside the traditional manual therapy, Fisioline RADIANT® is provided with the automatic mode, both capacitive and resistive, allowing the automatic application of the radiofrequency without the continuous intervention of the operator.
Energy power bar: an interactive system between the operator and the energy
Electronic meter, energy power bar and right contact
Fisioline RADIANT® devices are equipped with an electronic meter that, through constant measure of the tension and current that flows to the patient, calculates the impedance of the treated area. The impedance measured in “Ohm” (Ω symbol) is constantly monitored during treatments and the energy transferred to tissues is displayed through an Energy Power Bar. This bar is divided into three sectors. The central sector (NORMOTHERMIA, green indicator) indicates an optimal energetic transfer. The filling of this Energy Power Bar is inversely proportional to the measured impedance, so the more the impedance decreases, the more the bar is filled (third sector, HYPERTHERMIA, red indicator). Vice versa, the bar remaining in the first sector (HYPOTHERMIA, blue indicator) indicates high impedance.
