ELEOS -Proximal Femur
FromOnkos Surgical

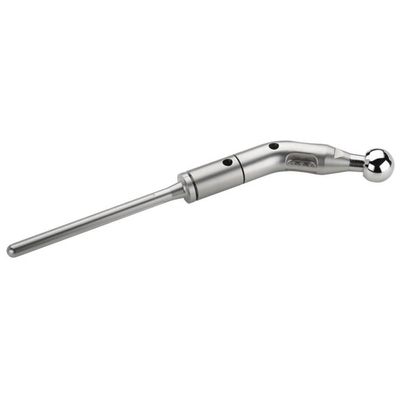

The ELEOS proximal femoral system consists of a femoral component, optional midsection, and stem. The femoral component is compatible with various femoral heads and bipolar options.
Most popular related searches
femoral component
femur
knee designed
intraoperative flexibility
surgery product
femoral head
femoral system
implant
femoral proximal
femoral stem
- Modular components (including midsections and stems) can be used in all ELEOS System procedures.
- System configurations were designed for proximal tibia, distal femur, total femur and proximal femoral applications. A revision hinge is also available.
- Stems in a variety of diameters to meet patient specific needs are available in cemented and canal-filling, tapered, straight and fluted designs, as well as plasma spray splined stems.
- Tibial and femoral resurfacing component stem extentions and tibial augments maximize options available to the surgeon.
- The ELEOS components are made of wrought alloy titanium and cast cobalt chrome.
- A one-piece axial hinge pin helps ensure a secure connection to the tibial tray and allows for ease of assembly of the hinge components from the lateral or medial side.
- Integrity and longevity of the hinge is maximized with internal/external rotation stops set for +/- 15° range of motion.
- The anatomic femoral components feature a raised lateral flange and a 5°valgus angle to assist in the restoration of patellofemoral kinematics, reduction of patellar subluxation and promotion of normal loading patterns.
- The Morse taper locking mechanism provides inter-component strength.
- Trial components accurately replicate the length of the actual implants, so that trial reduction is performed with greater confidence.
- Midsection trials use a quick connect feature for ease and accuracy of trialing.
- An independent study validates the biomechanical stability, reducing instability and implant dislocation.1
- Inter-component strength is achieved by utilizing a simple to assemble male/female taper implant locking mechanism. If need be, component disassembly is just as simple by utilizing proprietary instrumentation to disengage tapers.
- Compared to other hinge knee designs that impede normal kinematics in deep flexion, ELEOS features a 5° valgus angle to assist in the restoration of patello-femoral kinematics and a deepened patella groove coupled with a hinge component designed to accommodate relief, reducing patellar subluxation and promoting normal loading patterns.
- Quick-connect, modular trial components accurately replicate the length of the actual ELEOS implants, so that trial reduction is simply performed with greater stability and confidence.
- ELEOS offers a wide array of both cemented and canal filling stem options to meet surgeon preferences and increase intraoperative flexibility.
- When needed, the modularity of the ELEOS system easily allows for intra-operative flexibility offering additional options for stems, tibial augments and compatible acetabular components.
