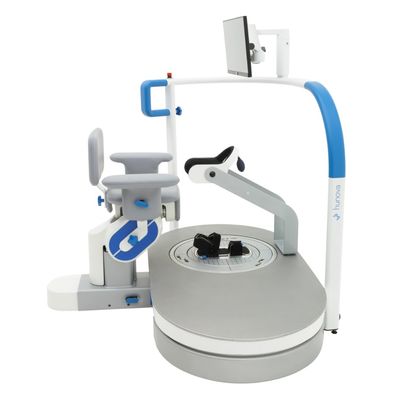

Movendo - Model hunova - Robotic Rehabilitation System
hunova is a robotic device for rehabilitation and the sensorimotor assessment of the lower limbs and trunk, developed to meet the clinical need for an objective assessment and treatment tool to support doctors, physiotherapists and patients throughout the rehabilitation process.
ORTHOPEDICS
In orthopedics and sports medicine, hunova is ideal for rehabilitation of the ankle, knee, hip and spine through passive mobilization, muscle strengthening, postural control and balance exercises.
GERIATRICS
In geriatrics, hunova makes allows to work on postural control, proprioception and balance, and is used to prevent and assess the risk of falls in the elderly, and in cognitive recovery.
NEUROLOGY
In neurology, hunova is indicated for post-stroke functional rehabilitation, the treatment of degenerative diseases of the central nervous system such as Parkinson’s disease and Multiple Sclerosis, and therapy for peripheral nervous system injuries, providing the patient with core stability, muscle strengthening, coordination, postural control, balance and proprioception exercises.
Galileo Galilei
hunova integrates assessment and rehabilitation in a synergistic pathway to deliver real-time monitoring of improvements during therapy and result-based treatment customization.
- Maximum patient weight : 331 lbs (150 Kg)
- Maximum input power:
- 1400 VA (for SN>=190)
- 2500 VA (for SN<=189)
- Power supply voltage: 115/230 Vac.
- Nominal frequency: 50/60 Hz.
- Maximum angular speed: 180 °/s.
- Maximum inclination of bipodalic platform in all directions: ±18°
- Maximum inclination of monopodalic platform in ankle configuration (sitting):
- Plantar flexion/extension: ±30°;
- External flexion/extension: ±18°;
- Maximum inclination of monopodalic platform in standing position:
- Plantar flexion/extension: ±18°;
- External flexion/extension: ±18°;
- Maximum robotic seat inclination:
- Sagittal plane: ±13°;
- Frontal plane: ±13°
- Maximum transmissible torque, seat and platform: 200 Nm.
- Torso sensor battery APC0000500
- Power supply voltage and capacity: 3,7 Vdc 1000mAh
- Torso sensor battery AME0000004
- Power supply voltage and capacity: 3,7 Vdc 1000mAh
- Operating temperature: 50° F (10° C) to 86° F (30° C)
- Storage temperature: 50° F (-20° C) to 86° F (70° C)
- Ambient relative humidity: 30 to 75% non-condensing
- Atmospheric pressure: No effect
- Altitude: Maximum 6561 ft (2000 m)
