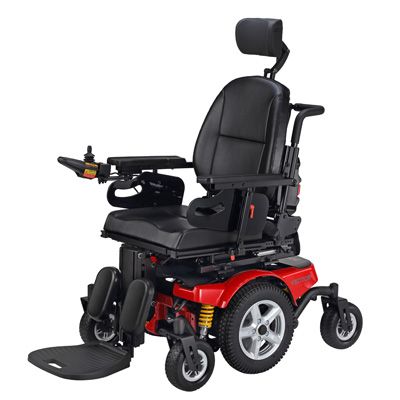

Merits -Model P323HD - K0858, K0862 -Vector HD - Avid Rehab
Full front and rear suspension. Dual in-line motors for enhanced efficiency, torque, range and performance. Power Tilt operated in 5°-55°. Power Recline 90°- 150°. mechanical shear reduction device helps prevent injury. Optional Features: 12" Seat Elevator, Power Footplate, Elevating Legrest, Power elevating Legrest, PG R-Net Controller.
P323HD
- Seat Width: 20", 22", 24"
- Seat Depth: 16", 18", 20", 22"
- Seat Height: 18.5"-19.5"
- Armrest Height:
- Backrest Height: 23"
- Min. Footrest Extension: 13"
- Max. Footrest Extension: 18"
- Overall Length: 38.6"
- Overall Height: 41.5"
- Overall Width: 25"
- Folded Width:
- Total Weight: 347 lbs.
- Capacity: 450 lbs.
- Max Speed: 5 mph
- Range: 12.5 mi
- Turning Radius: 27"
- Ground Clearance: 3"
- Motor
- Controller: PG VR2 60A or R-Net 60A
- Battery: 22 NF
- Charger: 5A off-board
- Gradient: 7.5°
- Casters: 8"
- Drive Wheels: 14" x3"
- Brakes: Intelligent, Regenerative
